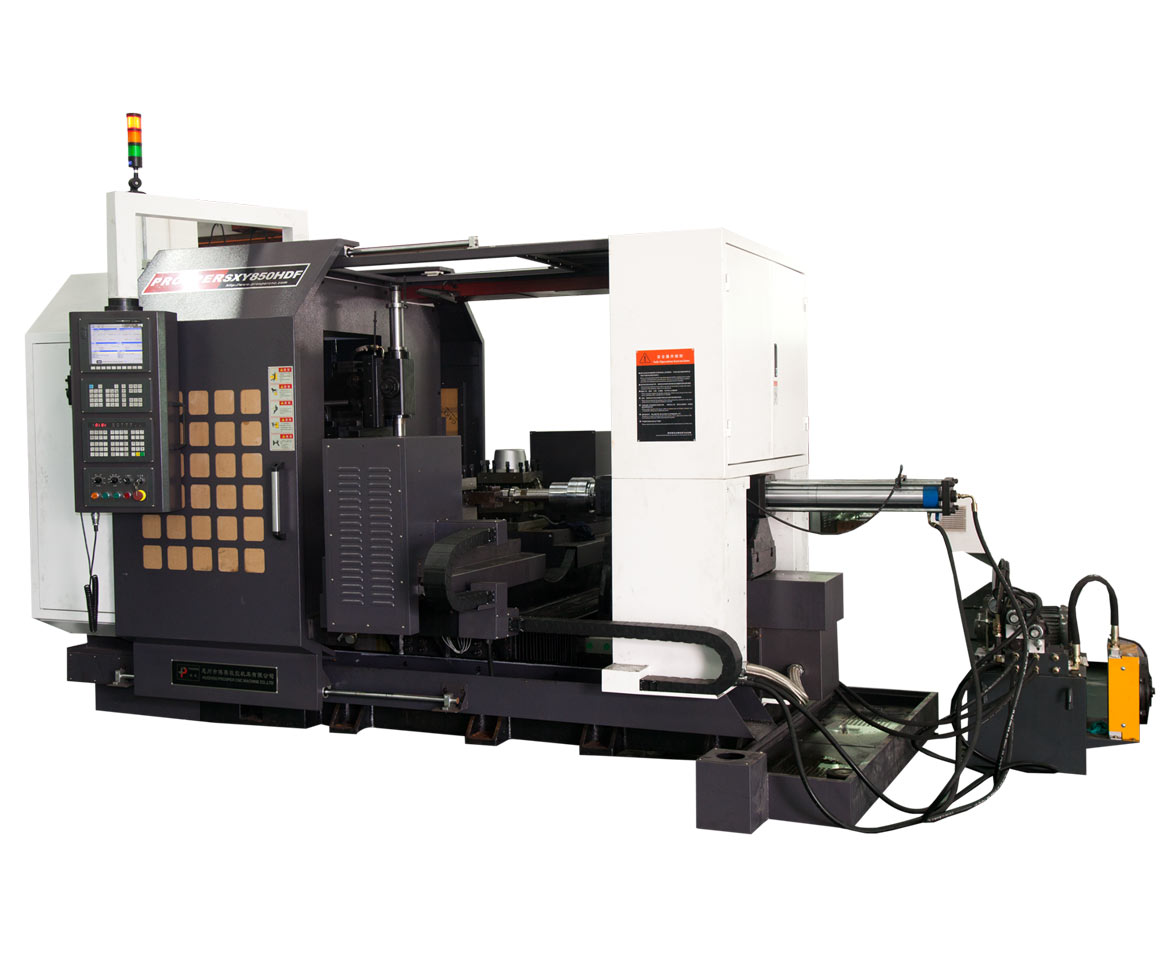

PS-CNCSXY850HD

Model NO.

Automobile,packing,container Spinning of major diameter products Spinning of big thickness material Spinning of products not achievable by human labor Substitution of drawing/reduction of cost Optional dual spindle to reduce mandrel cost Excellent cost effective/economical and practical

Technical Data:

Parameter Unit PS-CNCSXY850
Workpiece Diameter mm 900
Main spindel power Km 37 servo
Tailstock travel mm 700
Z axis travel mm 600
X axis travel mm 430
Tailstock force Kn 30
Tools positions   1+1/2+2/4+4
AI/CU Appx.thickness mm 0.5-6.0
Steel Appx.thickness mm 0.5-5.0
S/S Appx.thickness mm 0.5-3.0

This powerful machine could be applied in a wide range of production process.It posses the firm structure, high stability, exceptional design and innovate manufacturing technology.

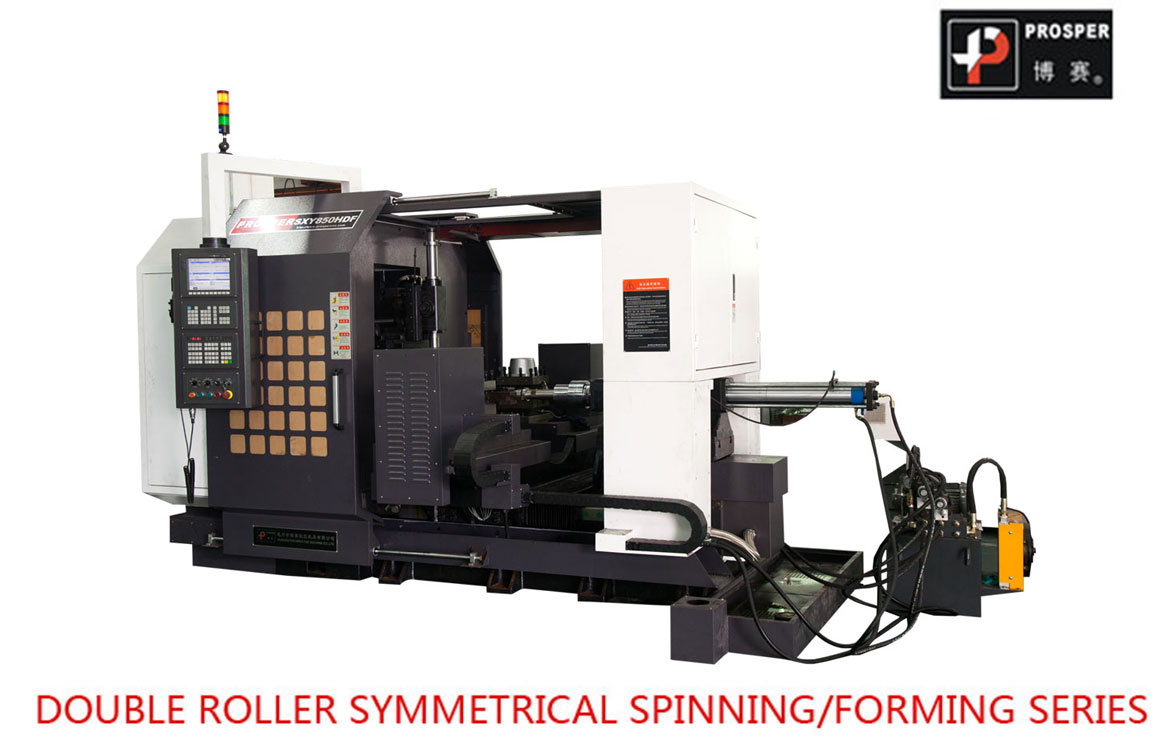

  • 1.DOUBLE SLIDES DOUBLE ROLLER HIGH COMPRESSIVE SPINNING
  • 2.SYNCHRONIZING AND STAGGER SPINNING
  • 3.MULTI AXISES/MULTI CHANNEL CNC CONTROL SYSTEM
  • 4.GREAT DIAMETER HEAVY THICKNESS MATERIAL
  • 5.CONVENTIONAL SPINNING AND FLOW FORMING
  • 6.DOUBLE SPINDLE OPTIONS,LOWER DOWN SPINNING DIE COST

 About Prosper

GuangDong Prosper CNC Machine Co.,Ltd is an enterprise of industrialization of new high technology which integrates research center,manufacturing,sales,customer service,and education and training school.After almost 20 years development,Prosper has nowadays owned a fifty thousand square meters operation site.Prosper values the quality of our products and services. We endeavor to provide the products and services of the most competitive advantage to our customers!

Assembly shop

The technology of workshop

The spinning experience pavilion

The technology of workshop

 Prosper Core Technology

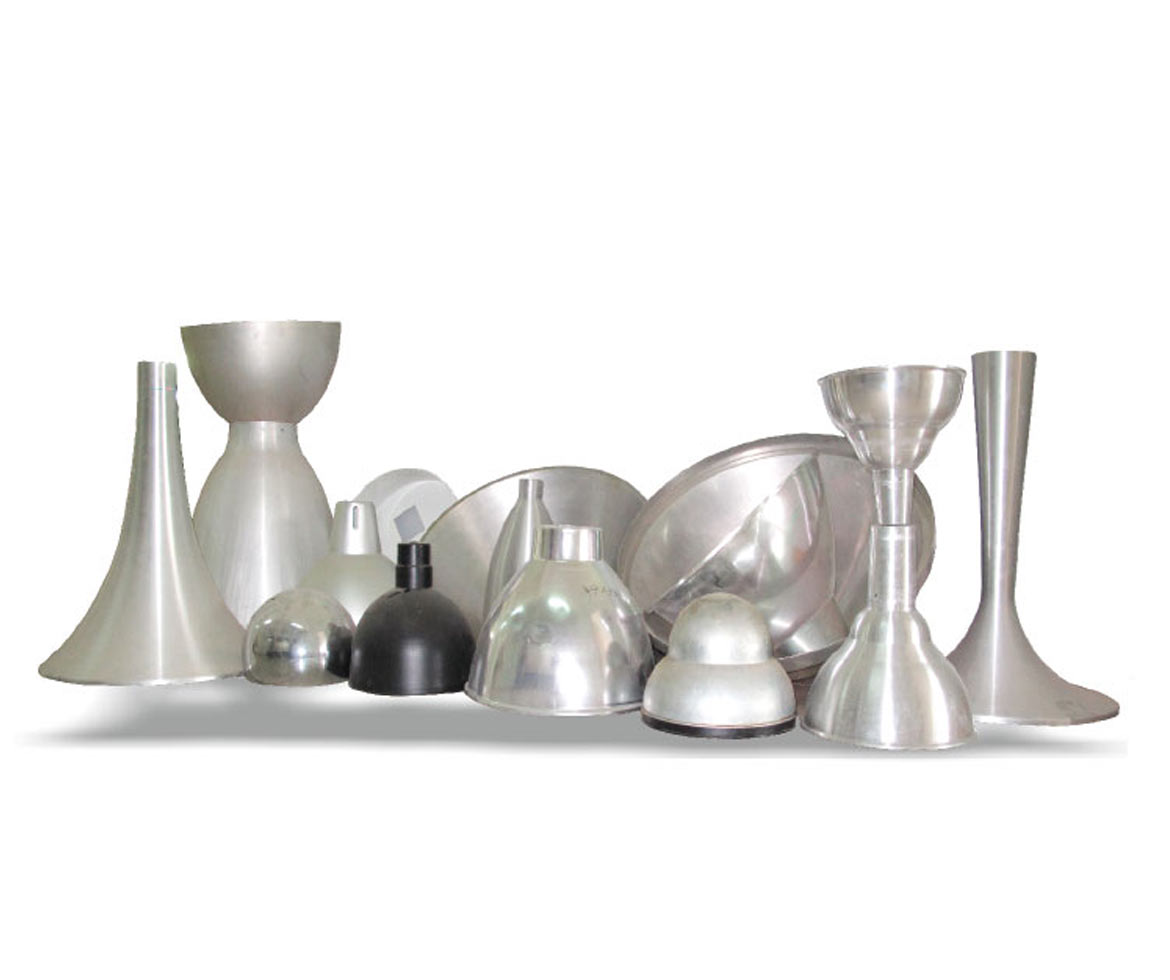

 Application field

 Cooperation strategic partner


Technical Data:

项 目 名 称 Parameter 计 量（单位） PS-CNCSXY850 PS-CNCSXY1000 PS-CNCSXY1200 PS-CNCSXY1450 PS-CNCSXY2000 PS-CNCSXY2500 PS-CNCSXY3500
毛坯直径 Workpiece Diameter mm 800 1000 1200 1450 2000 2500 3500
主电机功率 Main spindel power Km 37 伺服 45 伺服 45 伺服 45 伺服 55 伺服 75 伺服 100 伺服
尾座纵向总行程 Tailstock travel mm 700 1000 1000 1000 1200 1200 1200
旋轮纵向行程 Z axis travel mm 600 650 650 700 1200 1300 1500
旋轮横向行程 X axis travel mm 430 600 600 500 700 800 1000
最大尾顶力 Tailstock force Kn 30 30 30 60 100 120 150
旋轮刀具库工位 Tools positions   1+1/2+2/4+4 8+8 8+8 4+4/1+1 4+4/1+1 4+4/1+1 4+4/1+1
铝、铜板毛坯参考厚度 AI/CU Appx.thickness mm 0.5-6.0 0.5-4.0 0.5-4.0 0.5-8.0 0.5-10.0 0.5-12.0 1.0-15.0
低碳钢板毛坯参考厚度 Steel Appx.thickness mm 0.5-5.0 0.5-3.0 0.5-3.0 0.5-5.0 0.5-8.0 0.5-10.0 1.0-12.0
不锈钢板毛坯参考厚度 S/S Appx.thickness mm 0.5-3.0 0.5-2.0 0.5-2.0 0.5-4.0 1.0-5.0 1.0-6.0 1.0-8.0

Specifications:

High strength cast machine body
SIEMENS system with PROSPER secondly development
Spinning tools turret/rollers
Heave duty guide and ball screw
High torque/high speed spindle
Material centering Tools compensation
Digital integrated hydraulic system
Digital integrated lubrication system
BE unit(Optional)
BA unit(Optional)
Lubrication Spray unit(Optional)
Manipulator(Optional)
