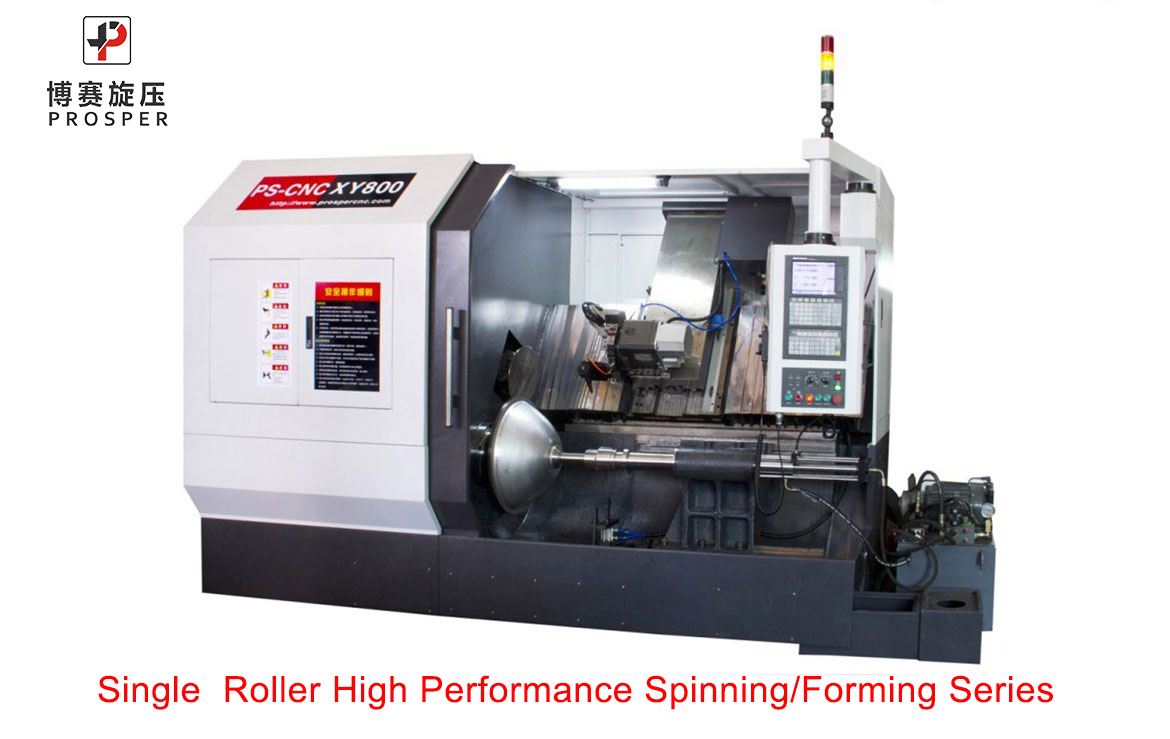

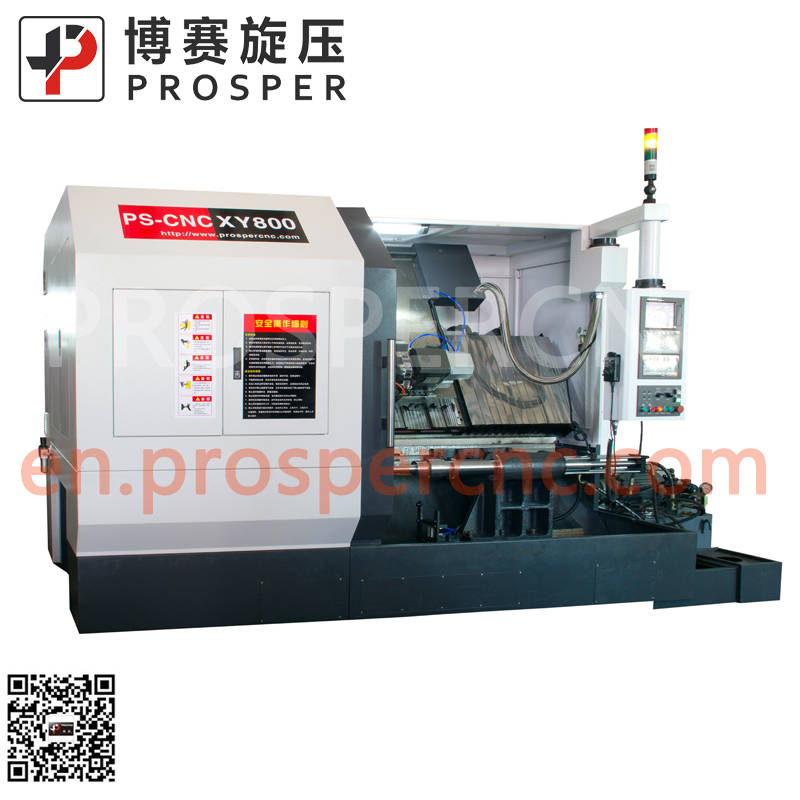

PS-CNCXY800

Model NO.

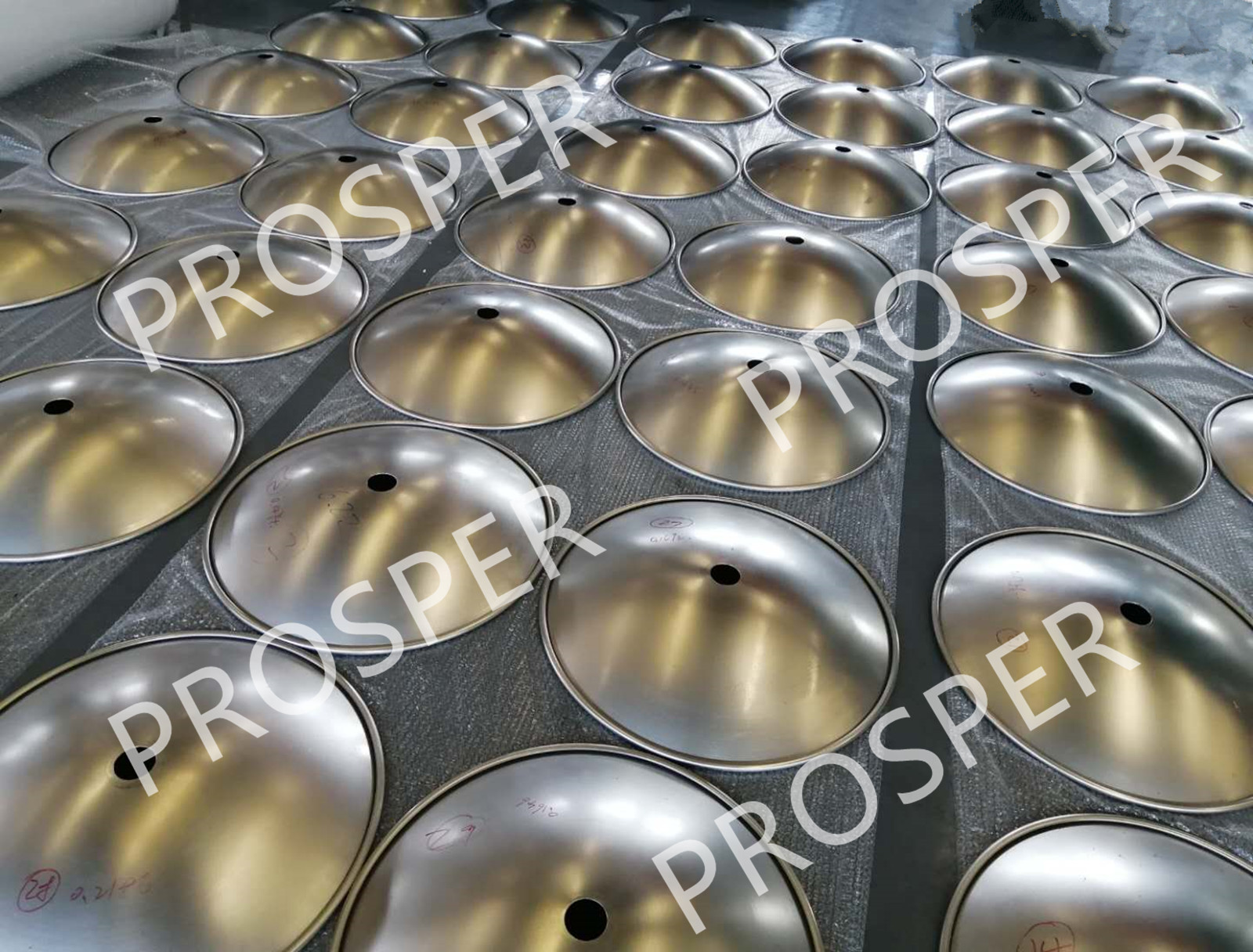

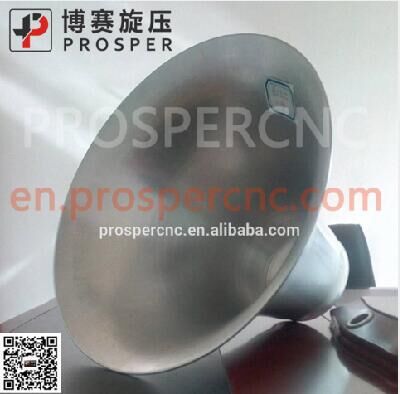

Applications:Lighting,kitchenware,packings Spinning of major diameter products Spinning of bog thickness material Spinning of products not achievable by human labor Substitution of drawing/reduction of cost Optional dual spindle to reduce mandrel cost Excellent cost...

Technical Data:

Parameter Unit PS-CNCXY800
Workpiece Diameter mm 800
Main spindel power Km 15 servo
Tailstock travel mm 1000
Z axis travel mm 800
X axis travel mm 400
Tailstock force Kn 30
Tailstock travel mm 60
Tools positions   8
AI/CU Appx.thickness mm 0.5-3.5
Steel Appx.thickness mm 0.5-2.5
S/S Appx.thickness mm 0.5-1.8

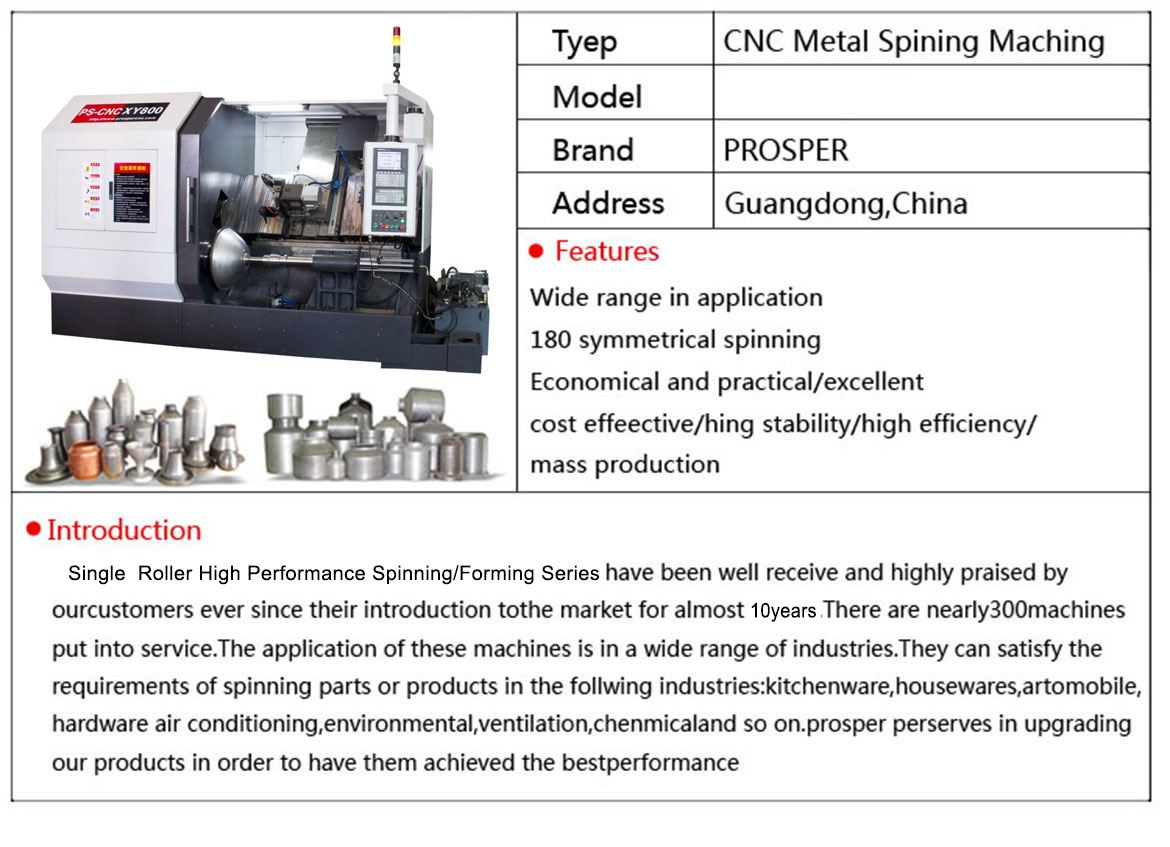

The application of these machines is in a wide range of industries.They can satisfy the requirements of spinning parts or products such as :Military Aerospace/aviation Automobile Chemical and so on.

  • 1. This series of equipment has powerful function with wide extensive product range, solid structure, highly stability. The machine body adopted high strength casting with 3d overall design.The sliding table and the system design adopt the multi-angle optional mode, which greatly increases the spinning strength.
  • 2. The machine tool can be equipted with fully automatic production line with the manipulator to receive high production
  • 3. The machine tool can realize positive spinning, reverse spinning, normal spinning, shearing spinning, staggered distance spinning, core die spinning no core die spinning.Including trimming, flanging, flanging, indentation, rolling and other processing.
  • 4. The machine adopts Germany Siemens SINUMERIK 828D multi-axis servo valve control system (Prosper secondly development), which has core mould protection function, automatic detection of each unit when starting up, automatic lubrication, fault diagnosis and overload protection.

 About Prosper

GuangDong Prosper CNC Machine Co.,Ltd is an enterprise of industrialization of new high technology which integrates research center,manufacturing,sales,customer service,and education and training school.After almost 20 years development,Prosper has nowadays owned a fifty thousand square meters operation site.Prosper values the quality of our products and services. We endeavor to provide the products and services of the most competitive advantage to our customers!

Assembly shop

The technology of workshop

The spinning experience pavilion

The technology of workshop

 Prosper Core Technology

 Application field

 Cooperation strategic partner


Technical Data:

项 目 名 称 Parameter 计 量(单位) PS-CNCXY800 PS-CNCXY1200 PS-CNCXY1250 PS-CNCXY1450
毛坯直径 Workpiece Diameter mm 800 1200 1300 1500
主电机功率 Main spindel power Km 15 伺服 22 伺服 30 伺服 30 伺服
尾座纵向总行程 Tailstock travel mm 1000 1000 1000 1100
旋轮纵向行程 Z axis travel mm 800 650 750 1000
旋轮横向行程 X axis travel mm 400 600 500 500
最大尾顶力 Tailstock force Kn 30 30 60 60
尾顶行程 Tailstock travel mm 60 100 120 150
旋轮刀具库工位 Tools positions   8 8 4 HD 4 HD
铝、铜板毛坯参考厚度 AI/CU Appx.thickness mm 0.5-3.5 0.5-4.0 0.5-5.0 0.5-5.0
低碳钢板毛坯参考厚度 Steel Appx.thickness mm 0.5-2.5 0.5-3.0 0.5-4.0 0.5-4.0
不锈钢板毛坯参考厚度 S/S Appx.thickness mm 0.5-1.8 0.5-2.0 0.5-3.0 0.5-3.0

Specifications:

Spinning tools turret/rollers
Heave duty guide and ball screw
High torque/high speed spindle
Material centering
Tools compensation
Digital integrated hydraulic system
Digital integrated lubrication system
BE unit(Optional)
Lubrication Spray unit(Optional)
Manipulator(Optional)
PROSPER SPINCAD Programming Software
Second Spindle(Optional)
Powev anit(Optional)
