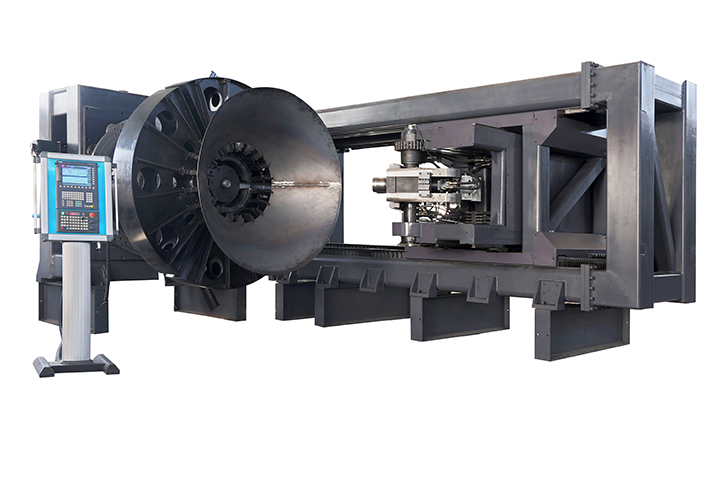

UNIVERSAL FLANGING SPINNING SERIES PS-CNCHF5000MAX

Model NO.

 UNIVERSAL FLANGING SPINNING SERIES PS-CNCHF5000MAX



Technical Data:

Parameter PS-CNCHF4000MAX PS-CNCHF5000MAX
MAX.sheet diameter 4000MM 5000MM
Max.product height 1500MM 1500MM
spindle torque output 15000NM 15000NM
spindle speed (stepless variable frequency adjustable) 0--100 0--100
Z axis travel 2000MM 2000MM
X axis travel 1800MM 1800MM
effective travel degree of the secondary spinning arm (c axis) 270 270
max.steel appx . thickness 16MM 16MM
max.s/s appx . thickness 10MM 10MM
machine size 11000*5500*3500MM 11000*6500*4000MM

The application of these machines is in a wide range of industries.They can satisfy the requirements of spinning parts or products such as :Military Aerospace/aviation Automobile Chemical and so on.

  • 1. This series of equipment has powerful function with wide extensive product range, solid structure, highly stability. The machine body adopted high strength casting with 3d overall design.The sliding table and the system design adopt the multi-angle optional mode, which greatly increases the spinning strength.
  • 2. The machine tool can be equipted with fully automatic production line with the manipulator to receive high production
  • 3. The machine tool can realize positive spinning, reverse spinning, normal spinning, shearing spinning, staggered distance spinning, core die spinning no core die spinning.Including trimming, flanging, flanging, indentation, rolling and other processing.
  • 4. The machine adopts Germany Siemens SINUMERIK 828D multi-axis servo valve control system (Prosper secondly development), which has core mould protection function, automatic detection of each unit when starting up, automatic lubrication, fault diagnosis and overload protection.

 About Prosper

GuangDong Prosper CNC Machine Co.,Ltd is an enterprise of industrialization of new high technology which integrates research center,manufacturing,sales,customer service,and education and training school.After almost 20 years development,Prosper has nowadays owned a fifty thousand square meters operation site.Prosper values the quality of our products and services. We endeavor to provide the products and services of the most competitive advantage to our customers!

Assembly shop

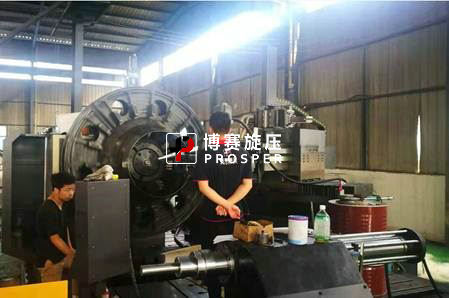

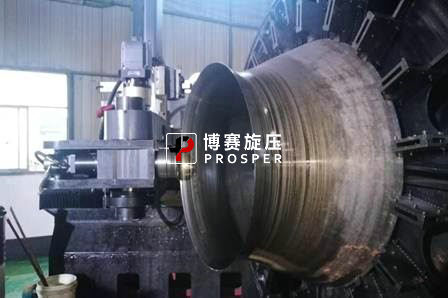

The technology of workshop

The spinning experience pavilion

The technology of workshop

 Prosper Core Technology

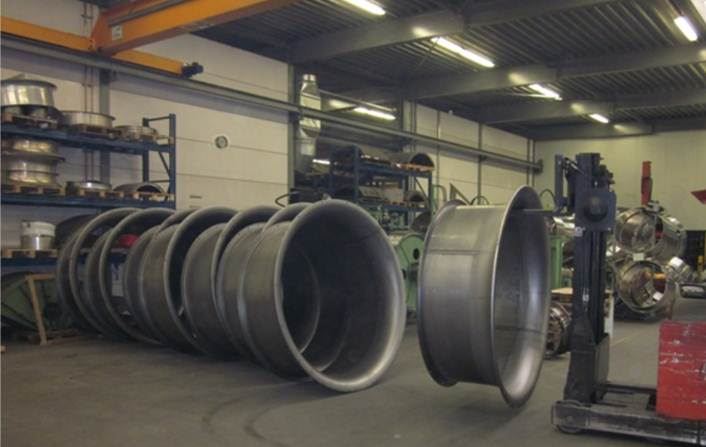

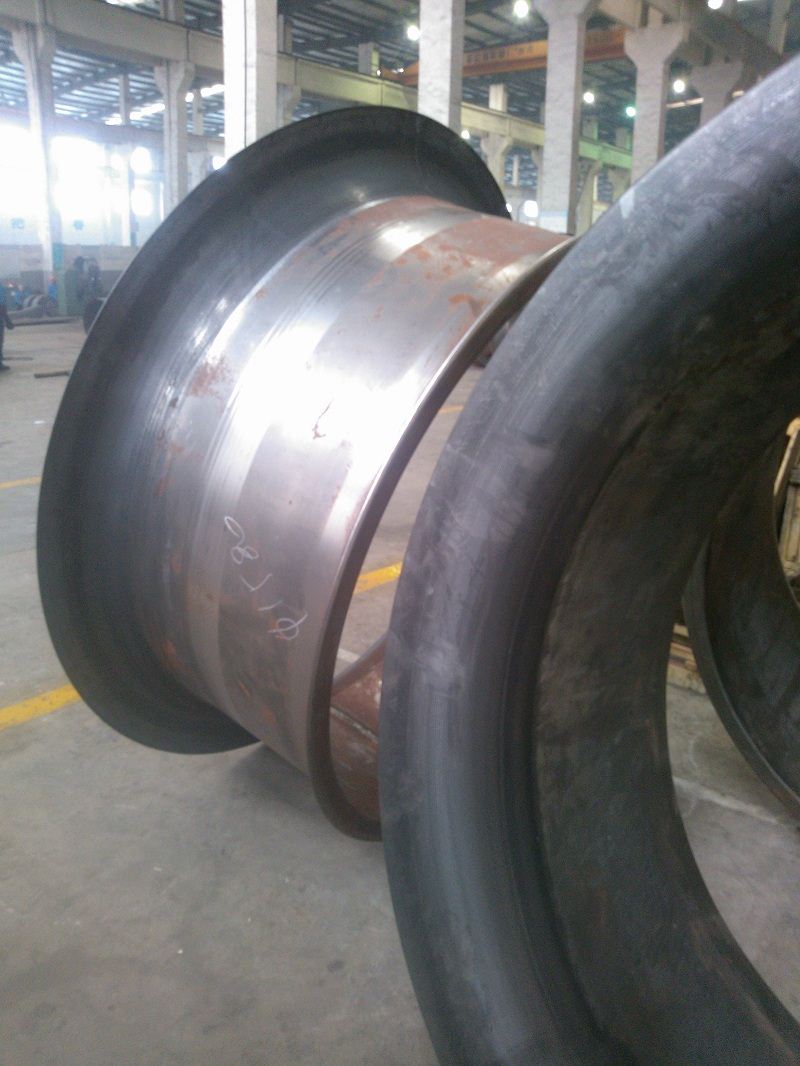

 Application field

 Cooperation strategic partner
