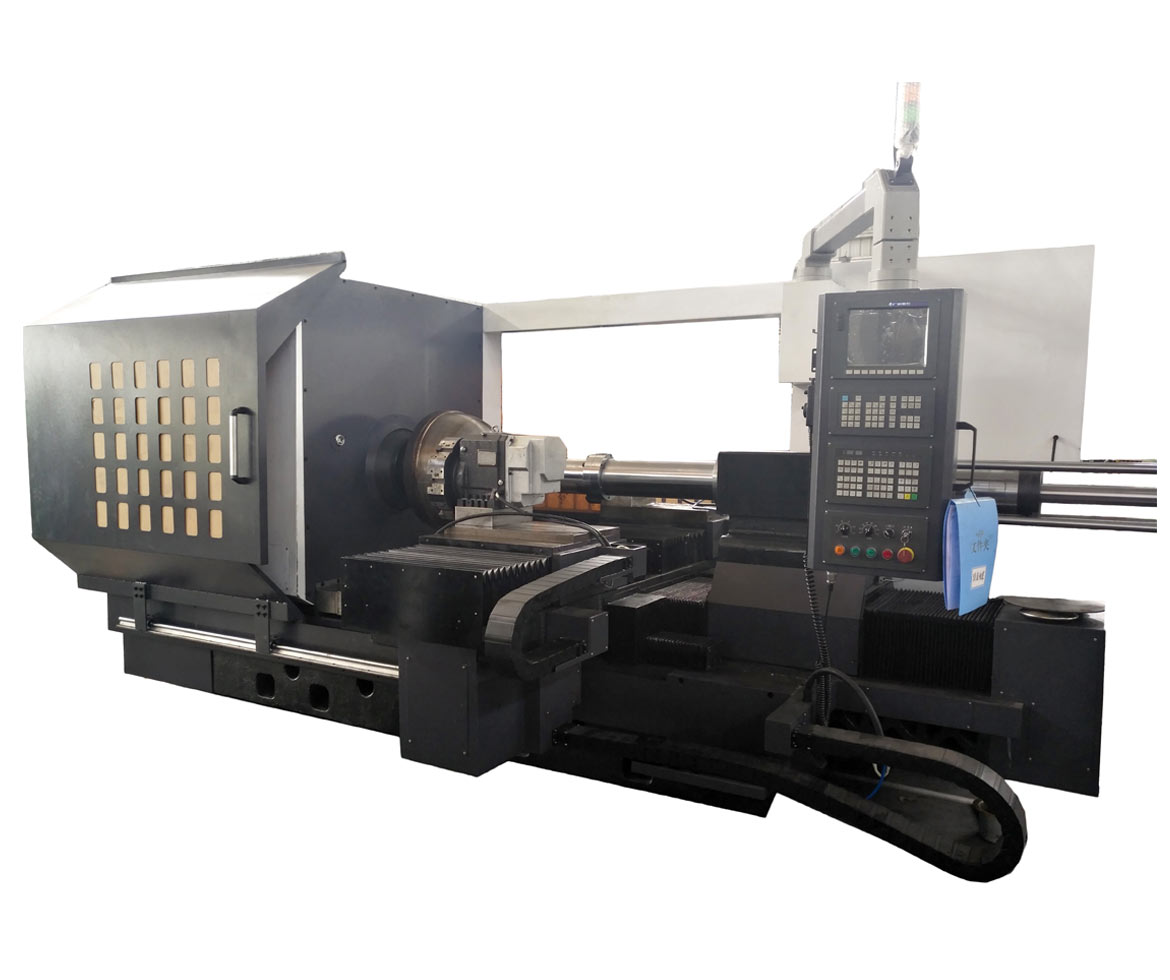

PS-CNCSXY1000

Model NO.

Applications:Lightings、kitchenware、tanks、container Wide range in application 180 symmetrical spinning Economical and practical/excellent Cost effective/High stability/high efficiency/mass production Technical

Technical Data:

Parameter	Unit	PS-CNCSXY1000
Workpiece Diameter	mm	1000/1200
Main spindel power	Kw	51 SERVO
Tailstock travel	mm	1200
Z axis travel	mm	650
X axis travel	mm	600
Tailstock force	Kn	100
Tools positions		2+2/4+4/8+8（Option）
AI/CU Appx.thickness	mm	0.5-10.0
Steel Appx.thickness	mm	0.5-8.0
S/S Appx.thickness	mm	0.5-5.0

This powerful machine could be applied in a wide range of production process.It posses the firm structure, high stability, exceptional design and innovate manufacturing technology.

1.PS-cncsxy series has been launched in the market for nearly 6 years, which has been well received by many users and has successfully delivered nearly 300.
2.This serier is widely used in kitchen, household, automobile, hardware, air conditioning, fan, chemical industry and other industries. Prosper has been constantly upgrading its products with unlimited innovation.

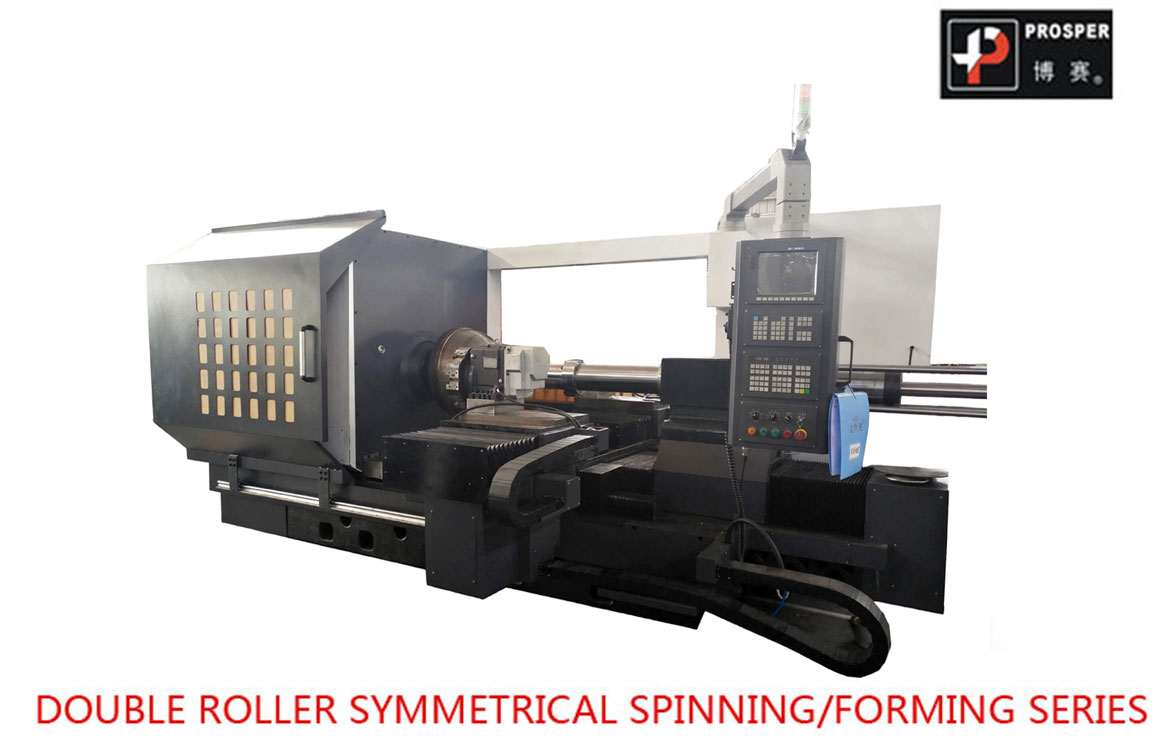

3.PS-cncsxy series has a double rollers at 180 degree to ensure the high stability and efficiency for mass production with cost effective.

About Prosper

GuangDong Prosper CNC Machine Co.,Ltd is an enterprise of industrialization of new high technology which integrates research center,manufacturing,sales,customer service,and education and training school.After almost 20 years development,Prosper has nowadays owned a fifty thousand square meters operation site.Prosper values the quality of our products and services. We endeavor to provide the products and services of the most competitive advantage to our customers!

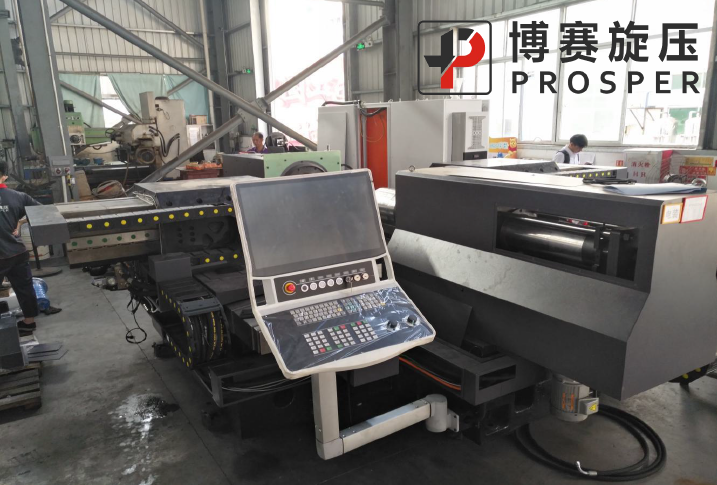

Assembly shop

The technology of workshop

The spinning experience pavilion

The technology of workshop

Prosper Core Technology

Application field

Cooperation strategic partner

Technical Data:

项目名称	Parameter	计量（单位）	PS-CNCSXY850	PS-CNCSXY1000	PS-CNCSXY1200	PS-CNCSXY1450	PS-CNCSXY2000	PS-CNCSXY2500	PS-CNCSXY3500
毛坯直径	Workpiece Diameter	mm	800	1000	1200	1450	2000	2500	3500
主电机功率	Main spindel power	Km	37 伺服	45 伺服	45 伺服	45 伺服	55 伺服	75 伺服	100 伺服
尾座纵向总行程	Tailstock travel	mm	700	1000	1000	1000	1200	1200	1200
旋轮纵向行程	Z axis travel	mm	600	650	650	700	1200	1300	1500
旋轮横向行程	X axis travel	mm	430	600	600	500	700	800	1000
最大尾顶力	Tailstock force	Kn	30	30	30	60	100	120	150
旋轮刀具库工位	Tools positions		1+1/2+2/4+4	1+1/2+2/4+4/8+8	8+8	4+4/1+1	4+4/1+1	4+4/1+1	4+4/1+1
铝、铜板毛坯参考厚度	AI/CU Appx.thickness	mm	0.5-6.0	0.5-4.0/10.0	0.5-4.0	0.5-8.0	0.5-10.0	0.5-12.0	1.0-15.0
低碳钢板毛坯参考厚度	Steel Appx.thickness	mm	0.5-5.0	0.5-3.0/8.0	0.5-3.0	0.5-5.0	0.5-8.0	0.5-10.0	1.0-12.0
不锈钢板毛坯参考厚度	S/S Appx.thickness	mm	0.5-3.0	0.5-2.0/5.0	0.5-2.0	0.5-4.0	1.0-5.0	1.0-6.0	1.0-8.0

Specifications:

High strength cast machine body

Prosper CNC spinning CNC system

Heave duty guide and ball screw

High torque/high speed spindle

Material centering Tools compensation

Digital integrated hydraulic system

Digital integrated lubrication system

BA unit(Optional)

Manipulator(Optional)

SIEMENS system with

PROSPER secondly development
