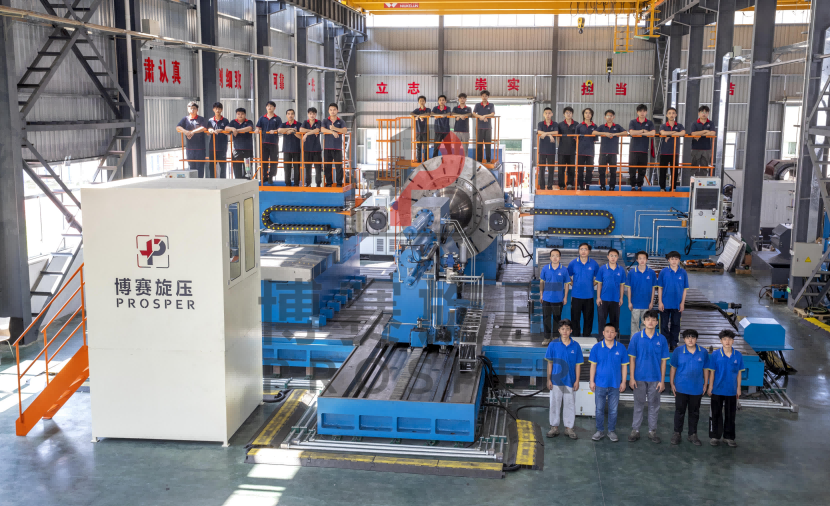

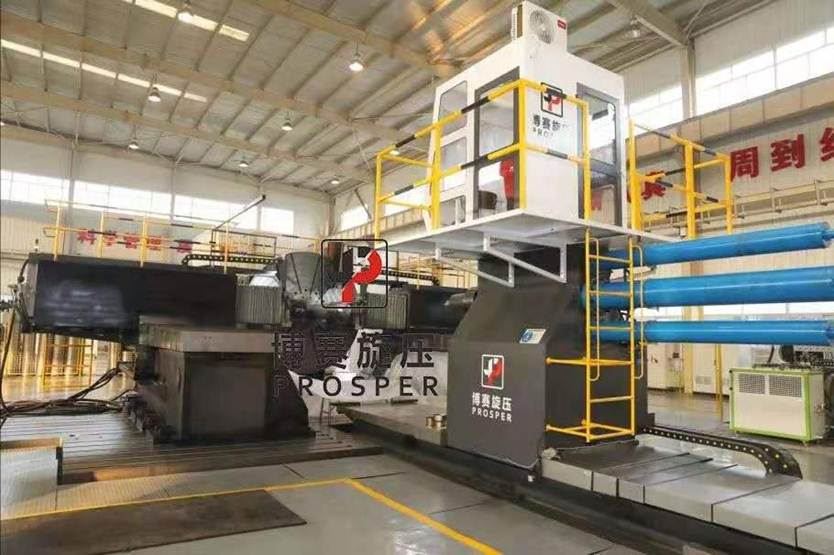

PS-CNCSXY5800

Model NO.

Machine Features:

The Machine is horizontal double slider structure
With single roller, double roller, three roller, four-roller mechanism
Cold spinning
Hot spinning
Equipped with clamping unit,can proceed the hot necking process

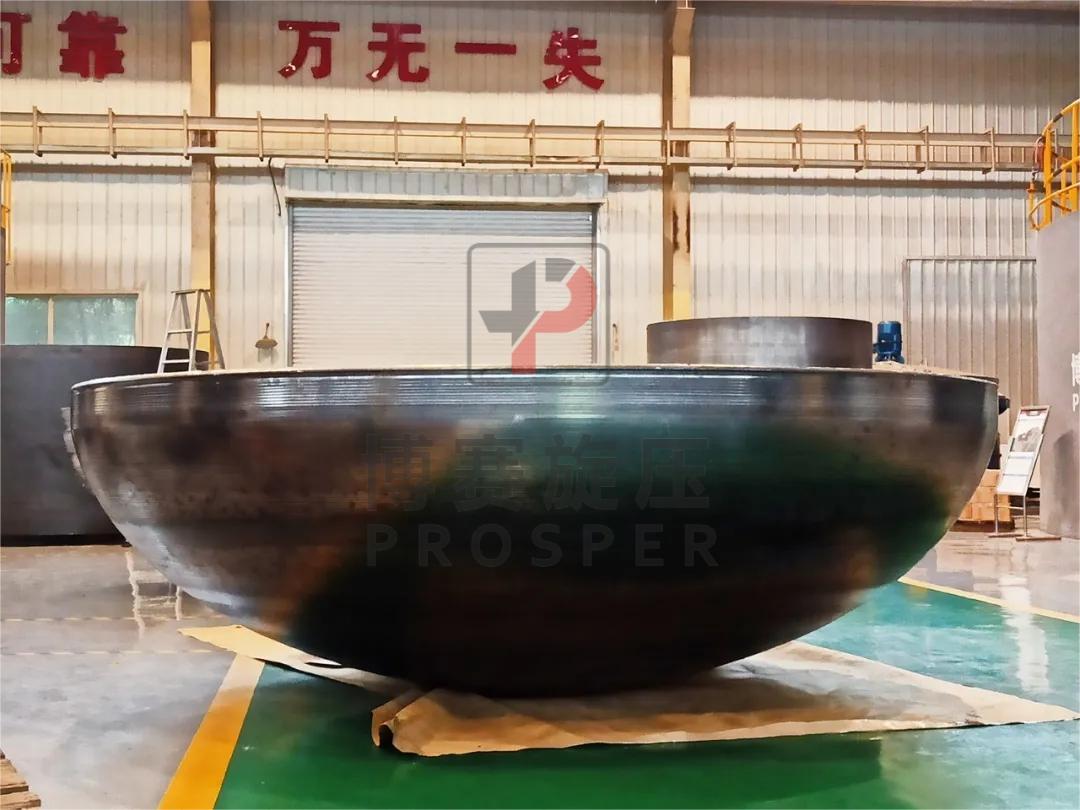

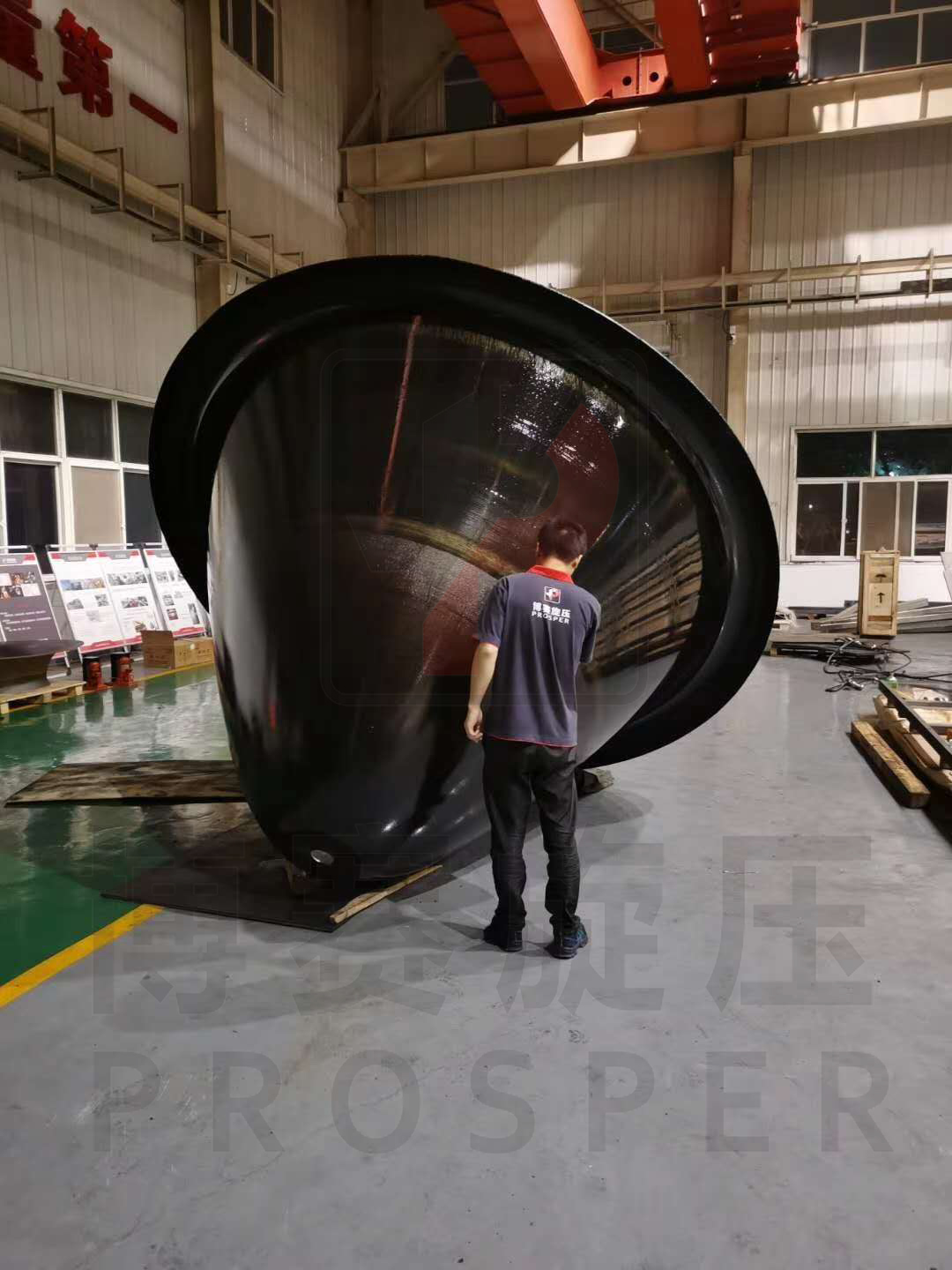

It is used for ball, hemispherical, cylinder and other parts with common, strong and various curved bus shapes
Equipped with 4+4 powerful spinning tool magazine, programmable automatic tool change

Technical Data:

Items	PS-CNCSXY3000	PS-CNCSXY4000	PS-CNCSXY5800
Max sheet diameter	3000mm	4000mm	5800mm
Max center distance	1800mm	2500mm	3500mm
Max X axis travel	800mm	900mm	1200mm
Max Z axis travel	1500mm	2000mm	3000mm
Main spindle motor	110kw servo	155kw servo	315kw servo
Spindle limit speed	600rpm	600rpm	600rpm
Spindle connecting size	A2-15	A2-20	A2-25
Tailstock force	150kn	150kn	200kn
Tailstock travel	600+600mm	800+1000mm	1000+1500mm
Tool sets	4 + 4	1 + 1	1 + 1
Hydraulic Station Power	15 kw	15--30kw	30--100kw
Maximum thrust of feed shaft	150kn--300kn	150kn--600kn	300kn--1000kn

The application of these machines is in a wide range of industries.They can satisfy the requirements of spinning parts or products such as :Military Aerospace/aviation Automobile Chemical and so on.

1. This series of equipment has powerful function with wide extensive product range, solid structure, highly stability. The machine body adopted high strength casting with 3d overall design.The sliding table and the system design adopt the multi-angle optional mode, which greatly increases the spinning strength.
2. The machine tool can be equipted with fully automatic production line with the manipulator to receive high production
3. The machine tool can realize positive spinning, reverse spinning, normal spinning, shearing spinning, staggered distance spinning, core die spinning no core die spinning.Including trimming, flanging, flanging, indentation, rolling and other processing.
4. The machine adopts Germany Siemens SINUMERIK 828D multi-axis servo valve control system (Prosper secondly development), which has core mould protection function, automatic detection of each unit when starting up, automatic lubrication, fault diagnosis and overload protection.

About Prosper

GuangDong Prosper CNC Machine Co.,Ltd is an enterprise of industrialization of new high technology which integrates research center,manufacturing,sales,customer service,and education and training school.After almost 20 years development,Prosper has nowadays owned a fifty thousand square meters operation site.Prosper values the quality of our products and services. We endeavor to provide the products and services of the most competitive advantage to our customers!

Assembly shop

The technology of workshop

The spinning experience pavilion

The technology of workshop

Prosper Core Technology

Application field

Cooperation strategic partner

Technical Data:

Items	PS-CNCSXY3000	PS-CNCSXY4000	PS-CNCSXY5800
Max sheet diameter	3000mm	4000mm	5800mm
Max center distance	1800mm	2500mm	3500mm
Max X axis travel	800mm	900mm	1200mm
Max Z axis travel	1500mm	2000mm	3000mm
Main spindle motor	110kw servo	155kw servo	315kw servo
Spindle limit speed	600rpm	600rpm	600rpm
Spindle connecting size	A2-15	A2-20	A2-25
Tailstock force	150kn	150kn	200kn
Tailstock travel	600+600mm	800+1000mm	1000+1500mm
Tool sets	4 + 4	1 + 1	1 + 1
Hydraulic Station Power	15 kw	15--30kw	30--100kw
Maximum thrust of feed shaft	150kn--300kn	150kn--600kn	300kn--1000kn

Spinning tools turret/rollers

Heave duty guide and ball screw

High torque/high speed spindle

Material centering

Tools compensation

Digital integrated hydraulic system

Digital integrated lubrication system

BE unit(Optional)

Lubrication Spray unit(Optional)

Manipulator(Optional)

PROSPER SPINCAD Programming Software

Second Spindle(Optional)

Powev anit(Optional)
