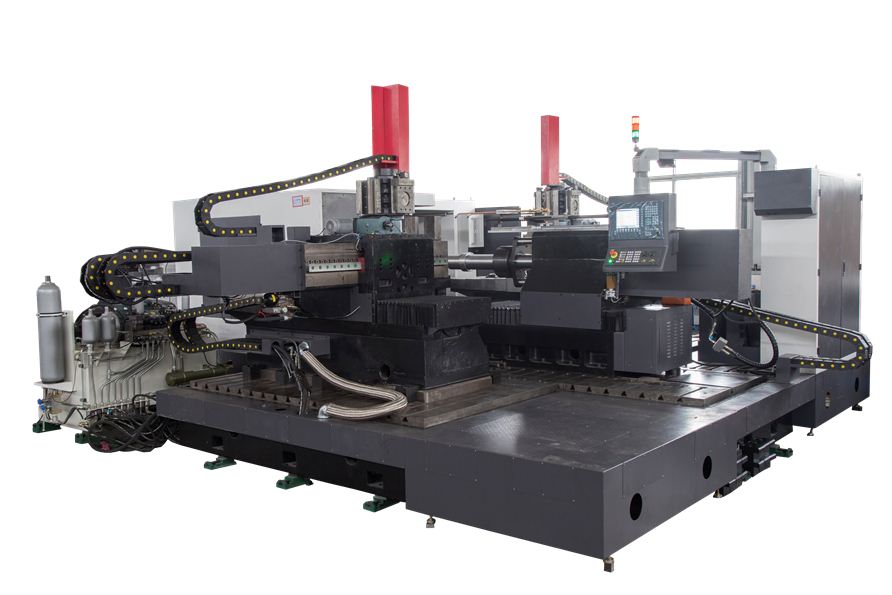

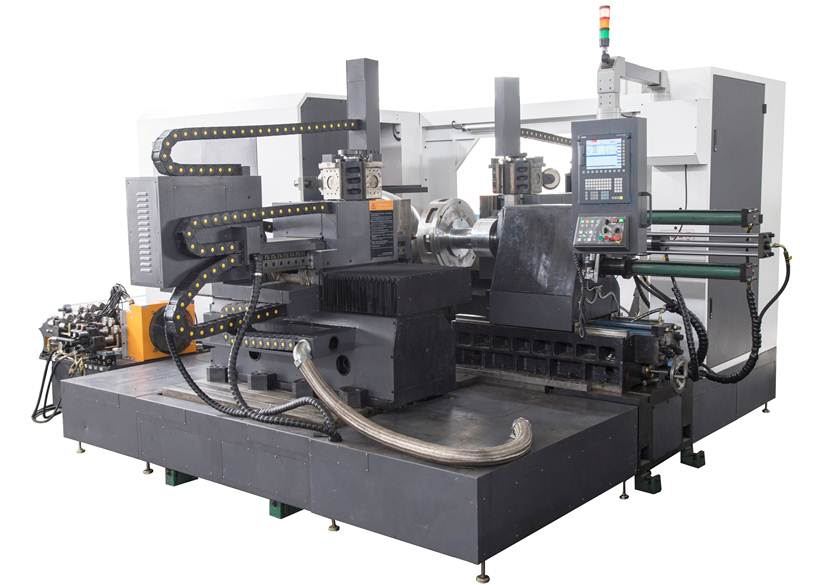

PS-CNCSXY2500

Model NO.

Applications:Lighting,kitchenware,packings Spinning of major diameter products Spinning of bog thickness material Spinning of products not achievable by human labor Substitution of drawing/reduction of cost Optional dual spindle to reduce mandrel cost Excellent cost...

Technical Data:

Items	PS-CNCSXY2000	PS-CNCSXY2500
Max sheet diameter	2000mm	2500mm
Max X axis travel	600mm	800mm
Max X Axis Force	160kn	220kn
Max Z axis travel	1100mm	1400mm
Max Z Axis Force	160kn	220kn
Main spindle motor	75kw servo	100kw servo
Spindle limit speed	750rpm	600rpm
Spindle connecting size	A2-15	A2-15
Tailstock force	150kn	150kn
Tailstock travel	600+500mm	600+500mm
Tool sets	2 + 2 / 4 + 4	2 + 2 / 4 + 4
Hydraulic Station Power	7.5HP	30HP

The application of these machines is in a wide range of industries.They can satisfy the requirements of spinning parts or products such as :Military Aerospace/aviation Automobile Chemical and so on.

1. This series of equipment has powerful function with wide extensive product range, solid structure, highly stability. The machine body adopted high strength casting with 3d overall design.The sliding table and the system design adopt the multi-angle optional mode, which greatly increases the spinning strength.
2. The machine tool can be equipted with fully automatic production line with the manipulator to receive high production
3. The machine tool can realize positive spinning, reverse spinning, normal spinning, shearing spinning, staggered distance spinning, core die spinning no core die spinning.Including trimming, flanging, flanging, indentation, rolling and other processing.
4. The machine adopts Germany Siemens SINUMERIK 828D multi-axis servo valve control system (Prosper secondly development), which has core mould protection function, automatic detection of each unit when starting up, automatic lubrication, fault diagnosis and overload protection.

About Prosper

GuangDong Prosper CNC Machine Co.,Ltd is an enterprise of industrialization of new high technology which integrates research center,manufacturing,sales,customer service,and education and training school.After almost 20 years development,Prosper has nowadays owned a fifty thousand square meters operation site.Prosper values the quality of our products and services. We endeavor to provide the products and services of the most competitive advantage to our customers!

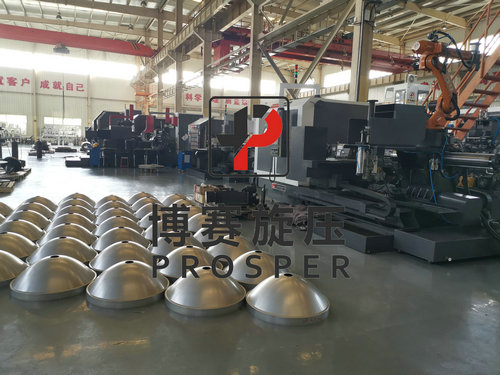

Assembly shop

The technology of workshop

The spinning experience pavilion

The technology of workshop

Prosper Core Technology

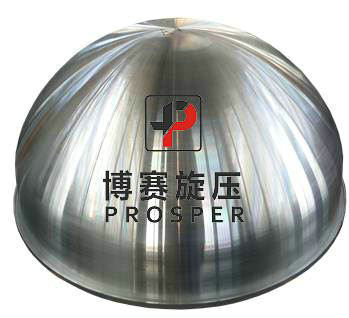

Application field

Cooperation strategic partner

Technical Data:

Parameter	Unit	PS-CNCSXY2500
Workpiece Diameter	mm	2500
Main spindel power	Km	75 servo
Tailstock travel	mm	1200
Z axis travel	mm	1300
X axis travel	mm	800
Tailstock force	Kn	120
Tailstock travel	mm	120
Tools positions		4 +4/1+1
AI/CU Appx.thickness	mm	1.0-12.0
Steel Appx.thickness	mm	1.0-10.0
S/S Appx.thickness	mm	1.0-6.0

Specifications:

Spinning tools turret/rollers

Heave duty guide and ball screw

High torque/high speed spindle

Material centering

Tools compensation

Digital integrated hydraulic system

Digital integrated lubrication system

BE unit(Optional)

Lubrication Spray unit(Optional)

Manipulator(Optional)

PROSPER SPINCAD Programming Software

Second Spindle(Optional)

Powev anit(Optional)
