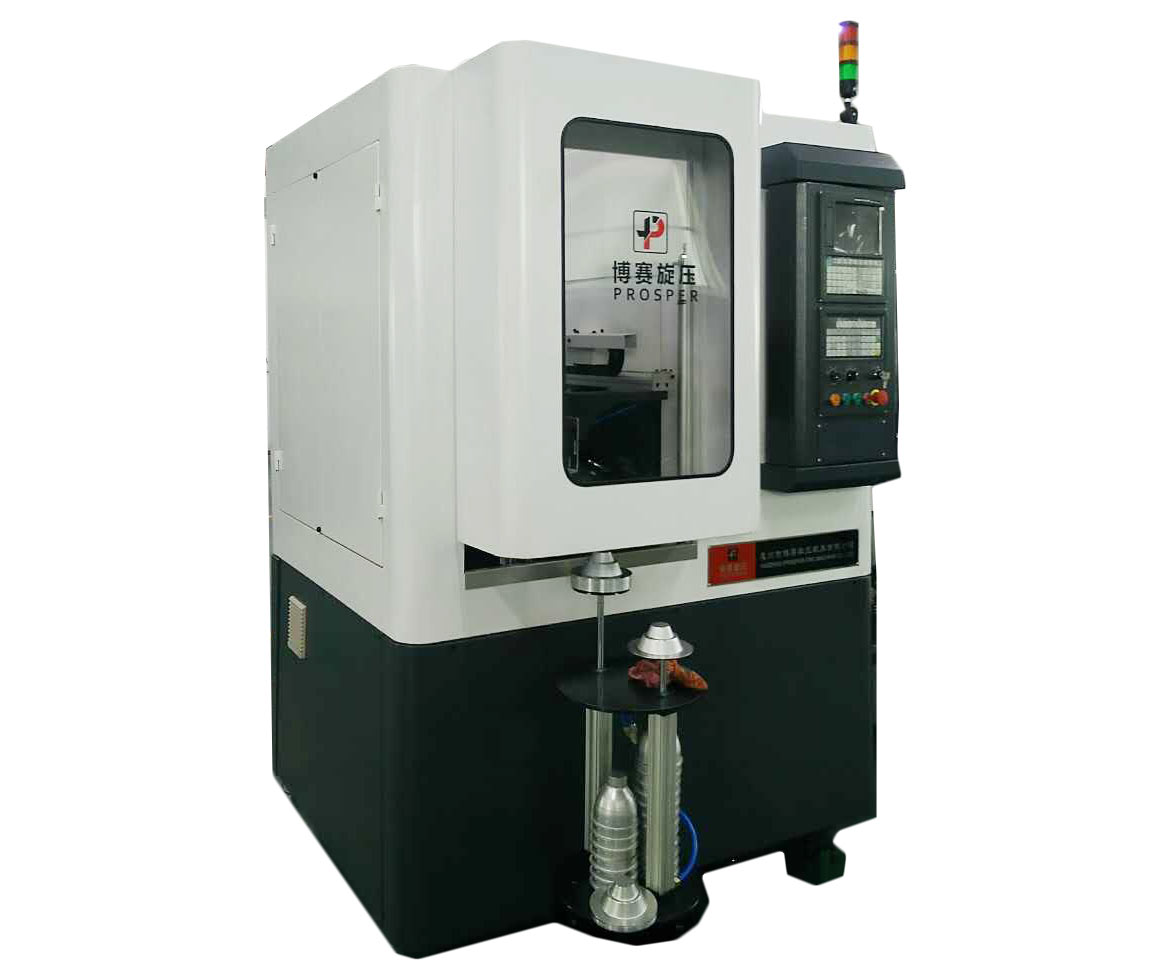

PS-CNCV300

Model NO.

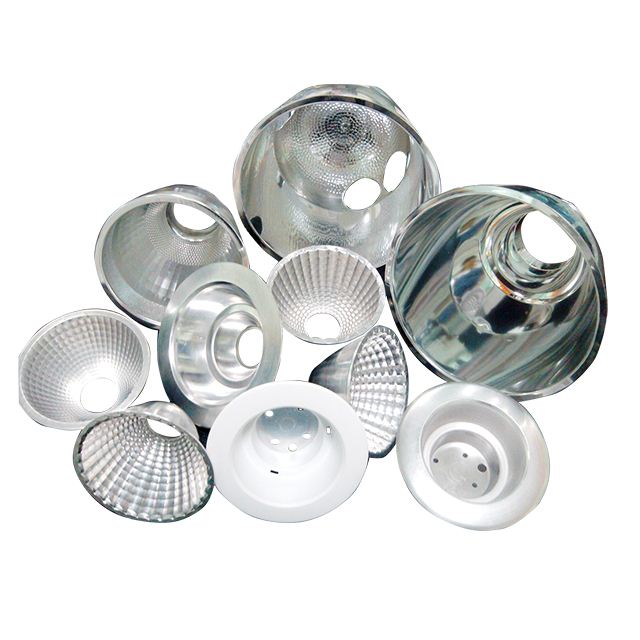

Applications:Lightings、metal art crafts、hardwares Best spinning solution for small to medium diameter/thickness product Excellent cost effective/economical practical High stability/efficiency Reduce cost of human labor/higt rate of return Technical

This series of machines are characterized by their highly efficient and cost-effective benefits
Best spinning solution for small to medium diameter/thickness product Excellent cost effective/economical practical High stability/efficiency Reduce cost of human labor/higt rate of return Technical
High strength cast machine body
Computerized SIEMENS Numerical Control System
Heave duty guide and ball screw
High torgue/high speed spindle
Material centering
Tool offset
Digital integrated hydraulic system
Digital integrated lubrication system
BA units
Manipulator
Surface treatment tools
Surface Finger tools
Prosper Spincad programming software

Applications:Lightings、metal art crafts、hardwares Best spinning solution for small to medium diameter/thickness product Excellent cost effective/economical practical High stability/efficiency Reduce cost of human labor/higt rate of return Technical
Technical Data:

SPECIFICATION:	Unit	PS-V300	PS-V500
Workpiece Diameter	mm	300	500
Main spindel power	KW	3.7KW	7.5KW
Z axis travel	mm	300	400
X axis travel	mm	380	480
Main spindel speed	rpm	4000	4000
Tailstock force	Kn	10	30
Tailstock travel	mm	300	500
Tools positions		2+2	2+2
AI/CU Appx.thickness	mm	0.5-2	0.5-4
Steel Appx.thickness	mm	0.5-1.5	0.5-3
S/S Appx.thickness	mm	0.5-0.8	0.5-1.5

Applications:Lightings、metal art crafts、hardwares
Best spinning solution for small to medium diameter/thickness product

Excellent cost effective/economical practical

High Efficiency/High stability

Match With automatic material loading system

About Prosper

GuangDong Prosper CNC Machine Co.,Ltd is an enterprise of industrialization of new high technology which integrates research center,manufacturing,sales,customer service,and education and training school.After almost 20 years development,Prosper has nowadays owned a fifty thousand square meters operation site.Prosper values the quality of our products and services. We endeavor to provide the products and services of the most competitive advantage to our customers!

Assembly shop

The technology of workshop

The spinning experience pavilion

The technology of workshop

Prosper Core Technology

Technical Data:

Parameter	Unit	PS-CNCXY250	PS-CNCXY360	PS-CNCXY450
Workpiece Diameter	mm	300	360	450
Main spindel power	Km	3.7KW	7.5KW	7.5KW
Z axis travel	mm	300	360	450
X axis travel	mm	380	400	400
Main spindel speed	rpm	4000	3000	3000
Tailstock force	Kn	10	15	15
Tailstock travel	mm	300	300	300
Tools positions		2+2	2+2	6
AI/CU Appx.thickness	mm	0.5-2	0.5-3.0	0.5-3.0
Steel Appx.thickness	mm	0.5-1.5	0.5-2.0	0.5-2.0
S/S Appx.thickness	mm	0.5-0.8	0.5-1.8	0.5-1.8

Specifications:

High strength Ht300 flat cast machine body

Prosper CNC spinning CNC system

Spinning tools turret/rollers

Heave duty guide and ball screw

Higt torque/high speed spindle

PROSPER SPINCAD Programming Software

BE unit(Optional)

Lubrication Spray unit(Optional)

Manipulator(Optional)

SIEMENS system with PROSPER secondly

Surface treatment tools(Optional)

Finger tools(Optional)
