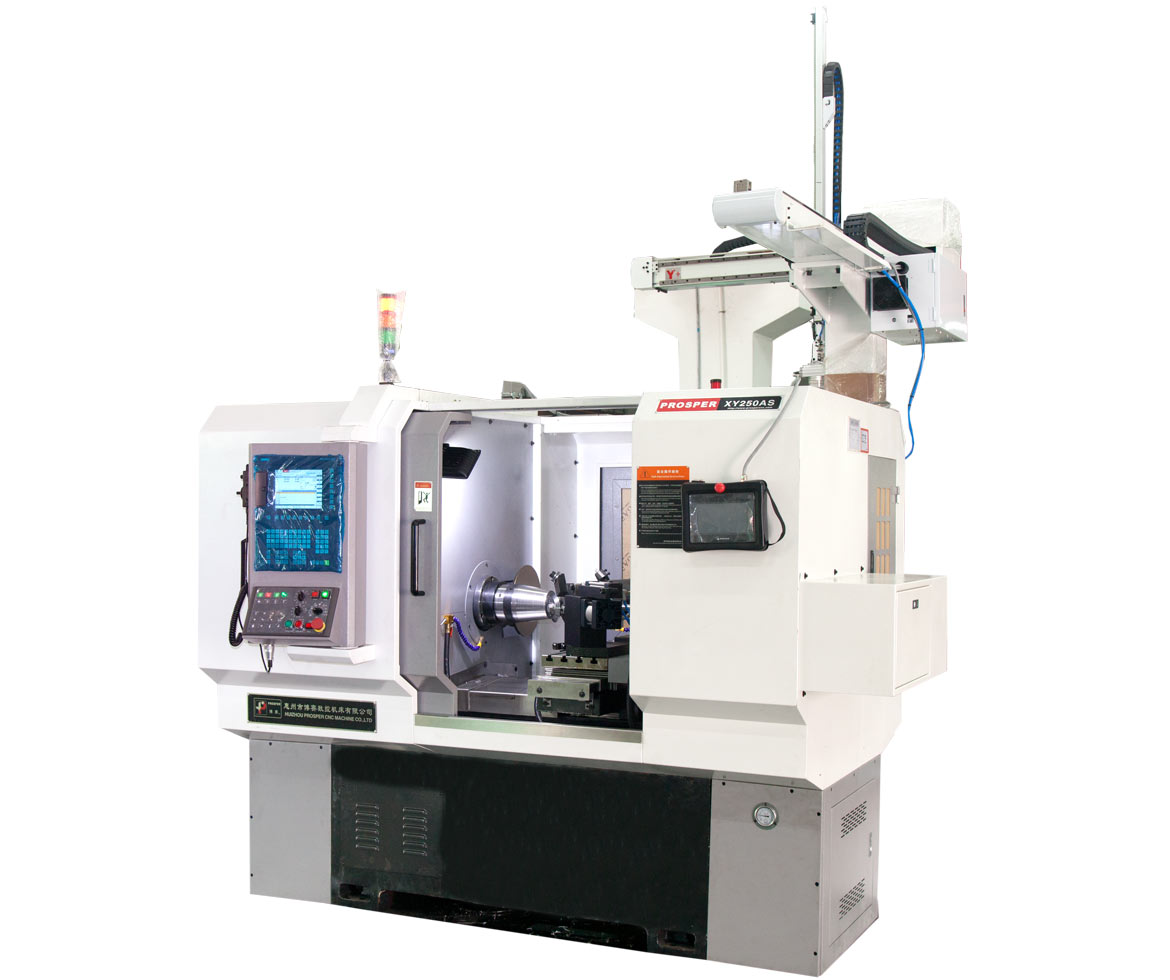

PS-CNCSXY250

Model NO.

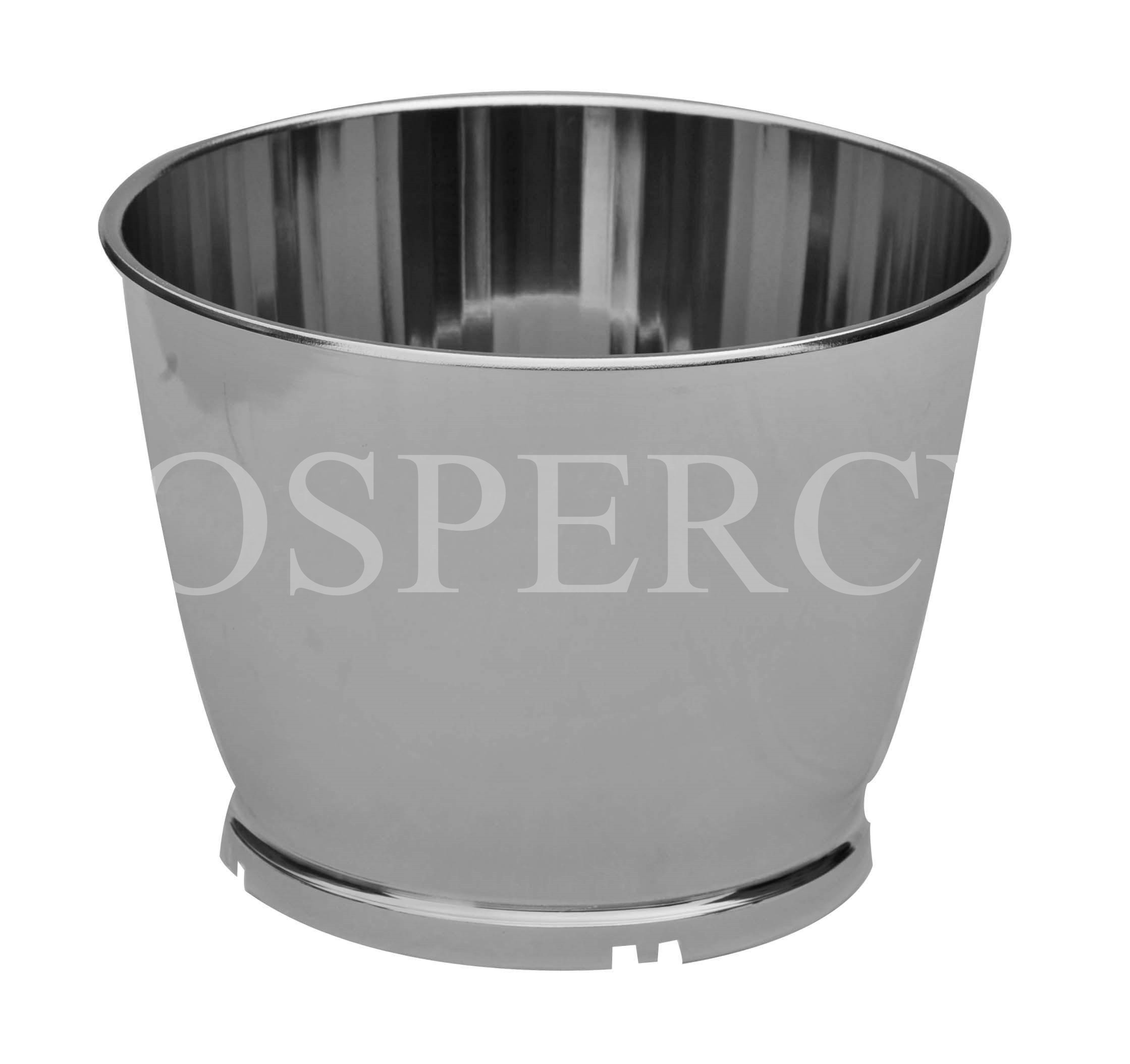

Applications:Lightings、metal art crafts、hardwares Best spinning solution for

small to medium diameter/thickness product Excellent cost effective/economical

practical High stability/efficiency Reduce cost of human labor/higt rate of return Technical

Technical Data:

Parameter	Unit	PS-CNCXY250
Workpiece Diameter	mm	300
Main spindel power	Km	3.7KW
Z axis travel	mm	380
X axis travel	mm	400
Main spindel speed	rpm	4000
Tailstock force	Kn	10
Tailstock travel	mm	300
Tools positions		2+2
AI/CU Appx.thickness	mm	0.5-2.5
Steel Appx.thickness	mm	0.5-2.0
S/S Appx.thickness	mm	0.5-1.5

Applications:Lightings、metal art crafts、hardwares
Best spinning solution for small to medium diameter/thickness product

Excellent cost effective/economical practical

High Efficiency/High stability

Match With automatic material loading system

About Prosper

GuangDong Prosper CNC Machine Co.,Ltd is an enterprise of industrialization of new high technology which integrates research center,manufacturing,sales,customer service,and education and training school.After almost 20 years development,Prosper has nowadays owned a fifty thousand square meters operation site.Prosper values the quality of our products and services. We endeavor to provide the products and services of the most competitive advantage to our customers!

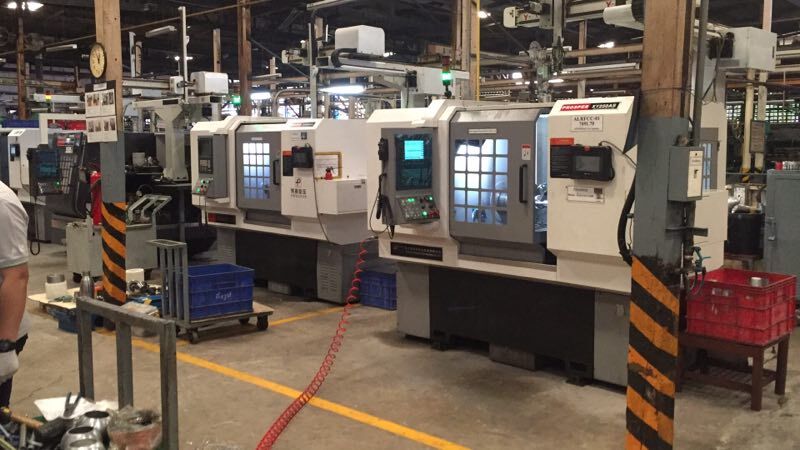

Assembly shop

The technology of workshop

The spinning experience pavilion

The technology of workshop

Prosper Core Technology

Technical Data:

项目名称	Parameter	计量（单位）	PS-CNCXY250	PS-CNCXY360	PS-CNCXY450
毛坯直径	Workpiece Diameter	mm	300	360	450
主轴电机功率	Main spindel power	Km	3.7KW	7.5KW	7.5KW
旋轮纵向行程	Z axis travel	mm	300	360	450
旋轮横向行程	X axis travel	mm	380	400	400
主轴最高转速	Main spindel speed	rpm	4000	3000	3000
最大尾顶力	Tailstock force	Kn	10	15	15
尾顶行程	Tailstock travel	mm	300	300	300
最旋轮刀具库工位	Tools positions		2+2	2+2	6
铝、铜板毛坯参考厚度	AI/CU Appx.thickness	mm	0.5-2	0.5-3.0	0.5-3.0
低碳钢板毛坯参考厚度	Steel Appx.thickness	mm	0.5-1.5	0.5-2.0	0.5-2.0
不锈钢板毛坯参考厚度	S/S Appx.thickness	mm	0.5-0.8	0.5-1.8	0.5-1.8

Specifications:

High strength Ht300 flat cast machine body

Prosper CNC spinning CNC system

Spinning tools turret/rollers

Heave duty guide and ball screw

Higt torque/high speed spindle

PROSPER SPINCAD Programming Software

BE unit(Optional)

Lubrication Spray unit(Optional)

Manipulator(Optional)

SIEMENS system with PROSPER secondly

Surface treatment tools(Optional)

Finger tools(Optional)
