PS-CNCFGB2000

Model NO.

Applications:This machine is horizontal type structure,specially design for the ventilation industry. The machine is suitable for processing of the components for ventilation, modular chimneys, flanging, beading, marking of several pieces

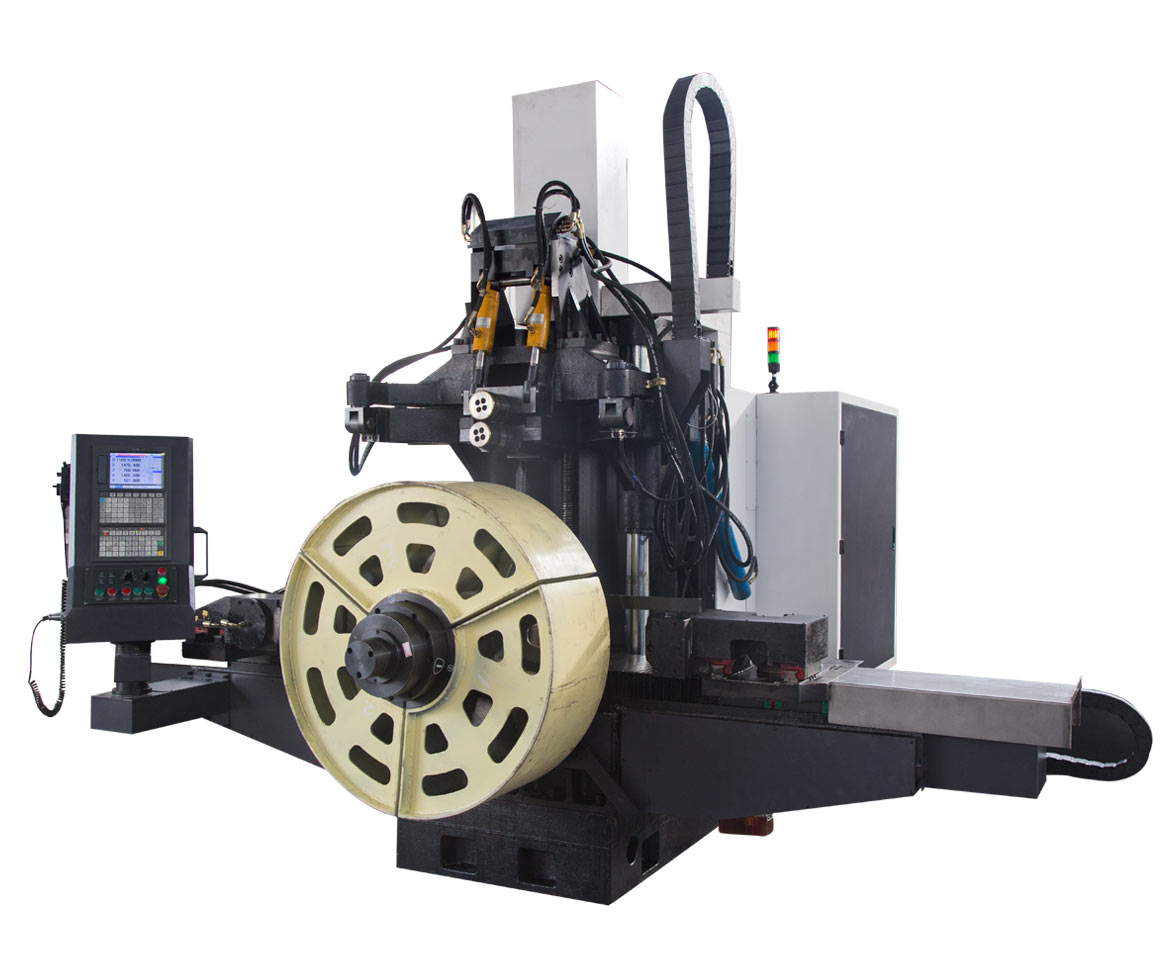

Horizontal Type Flanging Machine：

Technical Data:

Parameter	Unit	PS-CNCFGB2000
Diameter Range	mm	300mm-2000
Main spindel power	KG	3000
Spindle Rotational Speed	RPM	0-300
Spindle Size	size	Size 11
Process arms travel	mm	DIA 400-2050
Hydraulic power	Kw	15
Tools positions	Qty	4
AI/CU Appx.thickness	mm	1.0-15.0
Steel Appx.thickness	mm	1.0-12.0
S/S Appx.thickness	mm	1.0-6.0

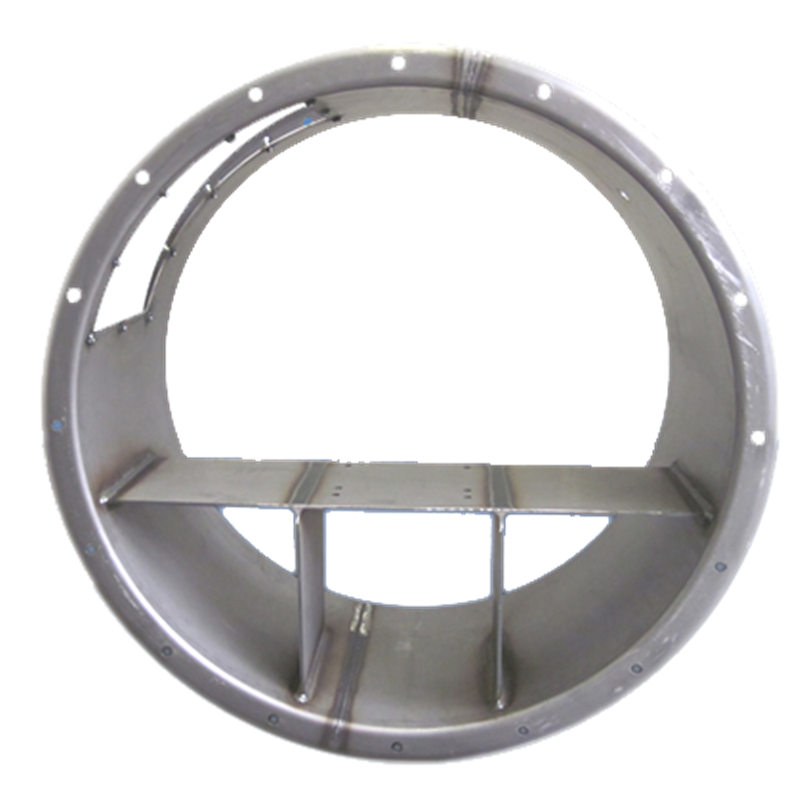

Applications:Fan and Ventilation ,Axial fan etc

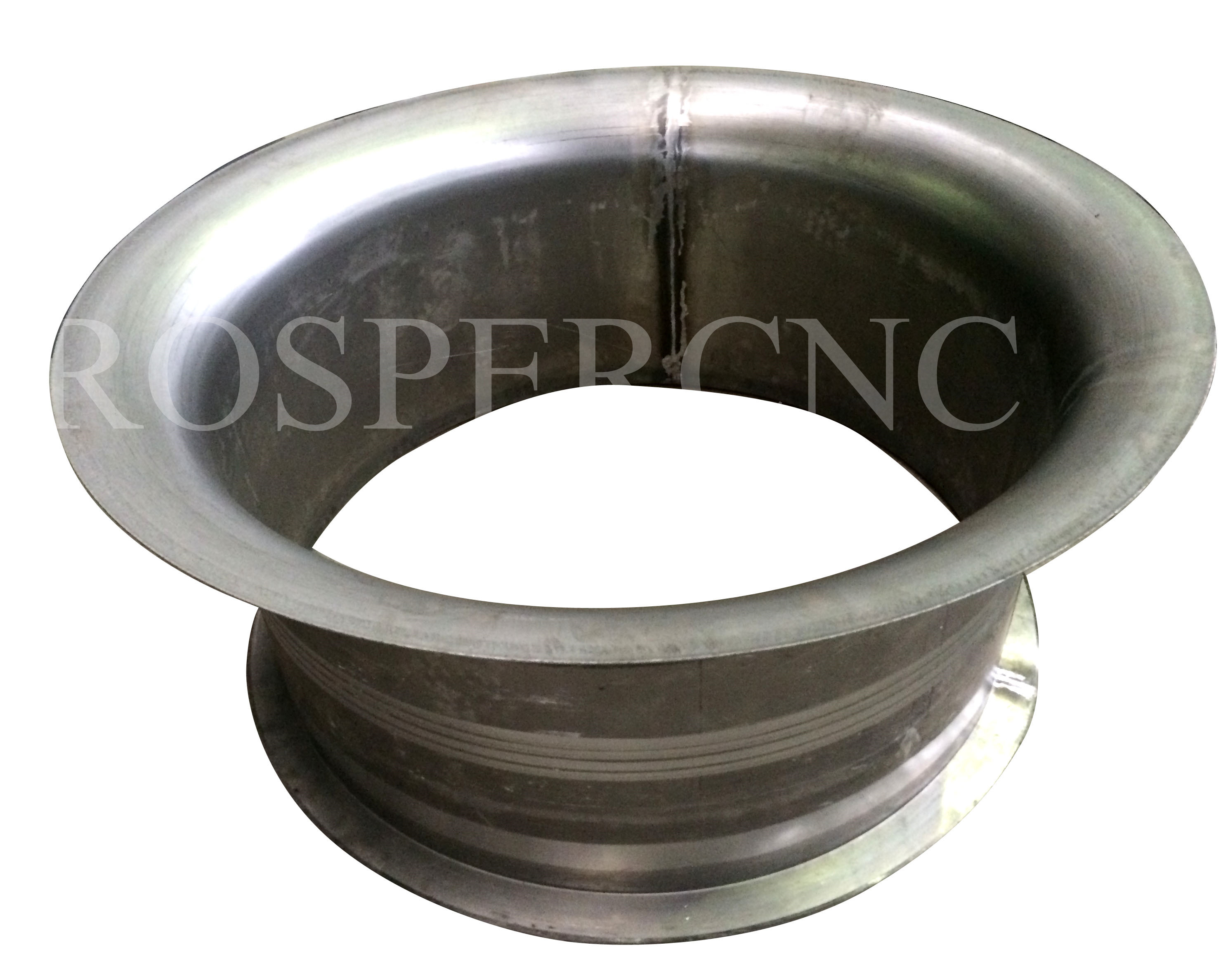

Function：Flanging,Bell mouth,Hole punching,Trimming etc.
This machine is specially design for the ventilation industry. The machine is suitable for processing of the components for ventilation, modular chimneys, flanging, beading, marking of several pieces
This series of machine has resolved the problems and limitations that exist in the traditional manufacturing method, including the intense work required for manual operation, inconsistency in products, low efficiency in production and the backwardness of the production technology.

About Prosper

GuangDong Prosper CNC Machine Co.,Ltd is an enterprise of industrialization of new high technology which integrates research center,manufacturing,sales,customer service,and education and training school.After almost 20 years development,Prosper has nowadays owned a fifty thousand square meters operation site.Prosper values the quality of our products and services. We endeavor to provide the products and services of the most competitive advantage to our customers!

Assembly shop

The technology of workshop

The spinning experience pavilion

The technology of workshop

Prosper Core Technology

Application field

Cooperation strategic partner

Technical Data:

项目名称	Parameter	计量（单位）	PS-CNCSXY850	PS-CNCSXY1000	PS-CNCSXY1200	PS-CNCSXY1450	PS-CNCSXY2000	PS-CNCSXY2500	PS-CNCSXY3500
毛坯直径	Workpiece Diameter	mm	800	1000	1200	1450	2000	2500	3500
主电机功率	Main spindel power	Km	37 伺服	45 伺服	45 伺服	45 伺服	55 伺服	75 伺服	100 伺服
尾座纵向总行程	Tailstock travel	mm	700	1000	1000	1000	1200	1200	1200
旋轮纵向行程	Z axis travel	mm	600	650	650	700	1200	1300	1500
旋轮横向行程	X axis travel	mm	430	600	600	500	700	800	1000
最大尾顶力	Tailstock force	Kn	30	30	30	60	100	120	150
旋轮刀具库工位	Tools positions		1+1/2+2/4+4	8+8	8+8	4+4/1+1	4+4/1+1	4+4/1+1	4+4/1+1
铝、铜板毛坯参考厚度	AI/CU Appx.thickness	mm	0.5-6.0	0.5-4.0	0.5-4.0	0.5-8.0	0.5-10.0	0.5-12.0	1.0-15.0
低碳钢板毛坯参考厚度	Steel Appx.thickness	mm	0.5-5.0	0.5-3.0	0.5-3.0	0.5-5.0	0.5-8.0	0.5-10.0	1.0-12.0
不锈钢板毛坯参考厚度	S/S Appx.thickness	mm	0.5-3.0	0.5-2.0	0.5-2.0	0.5-4.0	1.0-5.0	1.0-6.0	1.0-8.0

Specifications:

High strength cast machine body

SIEMENS system with PROSPER secondly development

Spinning tools turret/rollers

Heave duty guide and ball screw

High torque/high speed spindle

Material centering Tools compensation

Digital integrated hydraulic system

Digital integrated lubrication system

BE unit(Optional)

BA unit(Optional)

Lubrication Spray unit(Optional)

Manipulator(Optional)
