PS-CNCSXY160P

Model NO.

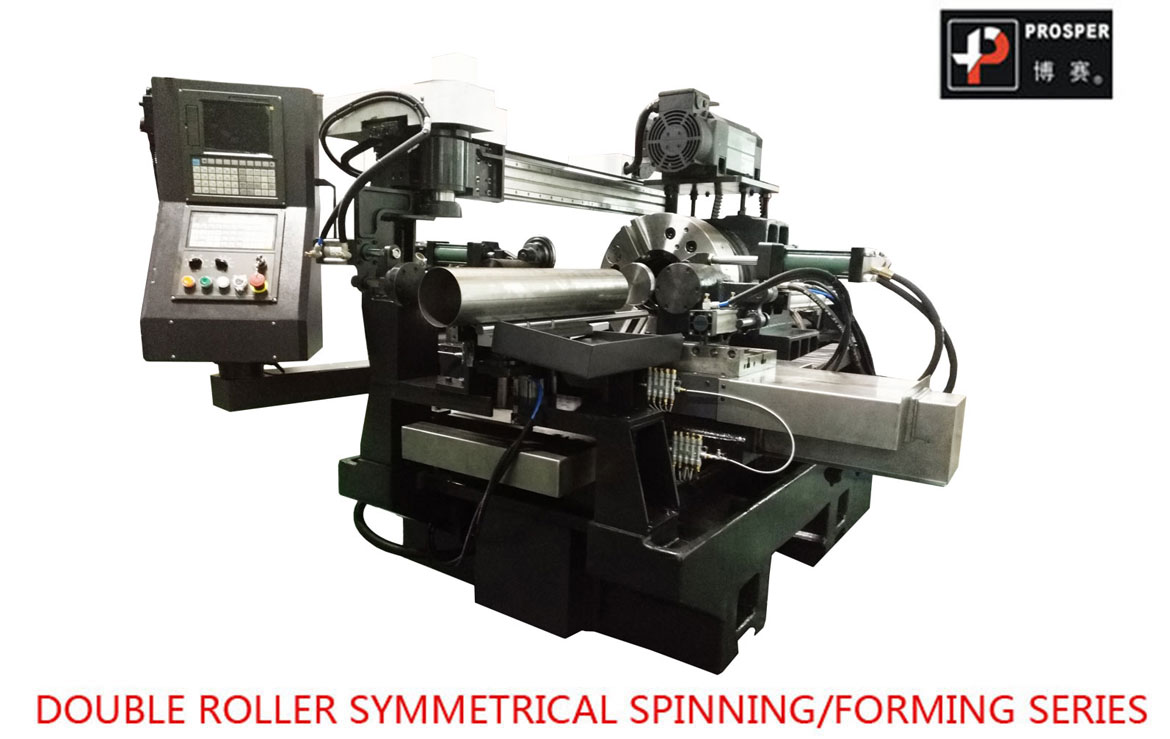

Applications:High Performance /High Compressive Stress 2-roller Spinning Necking Machine is specially developed for the production needs of the tubular spinning parts of the exhaust system of the automobile industry. The utility model has the advantages of practical functions, strong professionalism, high production efficiency, batch production and trial production of the barrel type and tube type products, and the products of trimming, turning, Chamfering and other processing functions.
The spindle of the machine adopts an independent spindle unit, and the bearing adopts high quality and high precision bearings to ensure that the spindle has good motion precision, stiffness and stability. The spindle drive adopts the large torque servo motor to ensure the constant output of the torque when the spindle is high and low. Using high strength spindle and whole casting slide to enhance mechanical strength;
Slide guide rail adopts high precision six face guide roller guide to ensure high strength and high precision;
The machine tool rotary motion drive mechanism is equipped with high-strength ball screw and double-nut ball screw unit. It adopts split forward and reverse ball screw and double-roller synchronism processing, which has good rigidity, workmanship and efficiency.
The spinning tool library is controlled by the system, multi position automatic switching function, and with the tool, cutting, scraping, trimming and shaping functions are realized
Applications:Lightings、metal art crafts、hardwares Best spinning solution for small to medium diameter/thickness product Excellent cost effective/economical practical High stability/efficiency Reduce cost of human labor/higt rate of return Technical

Technical Data:

Parameter unit PS-CNCSXY160P
MAX DIAMETER OF PIPE mm 160
MAX LENGTH OF PIPE mm 800
THICKNESS OF ALUMINUM ALLOY mm 3
THICKNESS OF CARBON STEEL mm 2
THICKNESS OF STAINLESS STEEL mm 1.5
Z-AXIS STROKE mm 300
X-AXIS STROKE mm 400
AXIS MOTOR POWER NW 10*2
SPINDLE MOTOR POWER KW 7.5servo
SPINDLE SPEED RPM 1200
PROCESSING DEVICE   2*180度转塔

Applications:Lightings、metal art crafts、hardwares
Best spinning solution for small to medium diameter/thickness product

Excellent cost effective/economical practical

High Efficiency/High stability

Match With automatic material loading system

 About Prosper

GuangDong Prosper CNC Machine Co.,Ltd is an enterprise of industrialization of new high technology which integrates research center,manufacturing,sales,customer service,and education and training school.After almost 20 years development,Prosper has nowadays owned a fifty thousand square meters operation site.Prosper values the quality of our products and services. We endeavor to provide the products and services of the most competitive advantage to our customers!

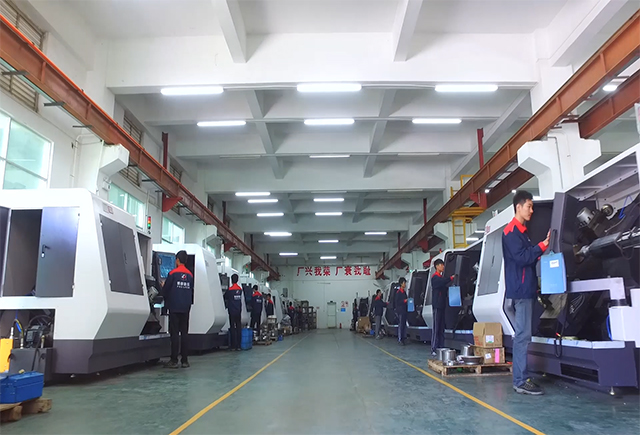

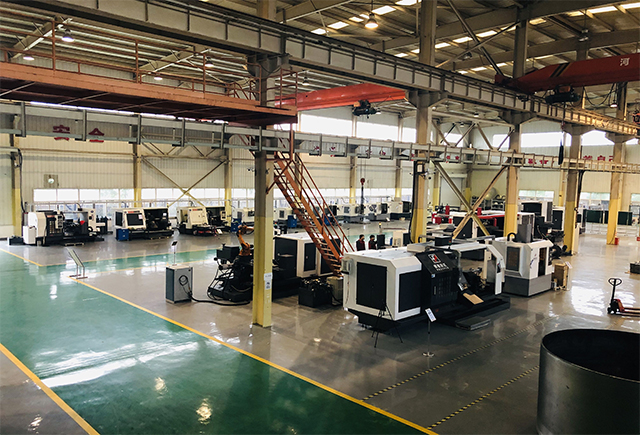

Assembly shop

The technology of workshop

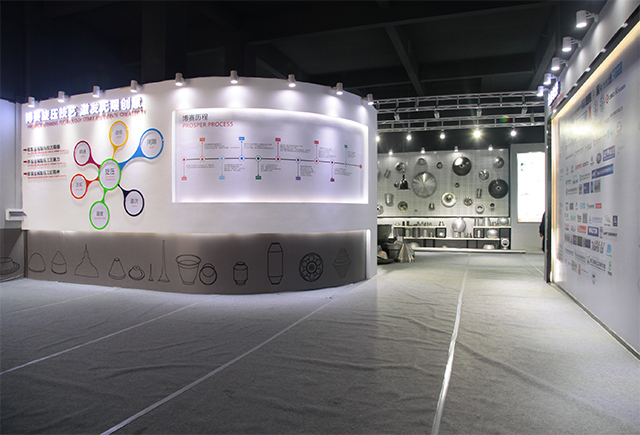

The spinning experience pavilion

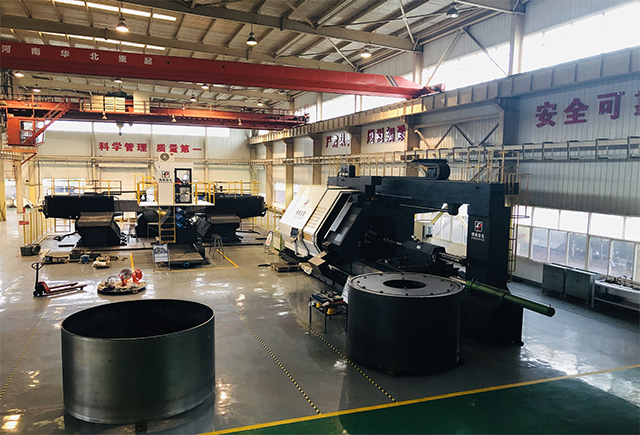

The technology of workshop

 Prosper Core Technology





Technical Data:

Parameter unit PS-CNCSXY160P PS-CNCSXY360P PS-CNCSXY360PS
MAX DIAMETER OF PIPE mm 160 130 150
MAX LENGTH OF PIPE mm 800 600 600
THICKNESS OF ALUMINUM ALLOY mm 3 3 3
THICKNESS OF CARBON STEEL mm 2 2 2
THICKNESS OF STAINLESS STEEL mm 1.5 1.5 1.5
Z-AXIS STROKE mm 300 300 300
X-AXIS STROKE mm 400 400 400
AXIS MOTOR POWER NW 10*2 10*2 11*2
SPINDLE MOTOR POWER KW 7.5伺服 7.5伺服 7.5伺服
SPINDLE SPEED RPM 1200 1000 1000
PROCESSING DEVICE   2*180度转塔 2*180度转塔 2*180度转塔

Specifications:

High strength Ht300 flat cast machine body
Prosper CNC spinning CNC system
Spinning tools turret/rollers
Heave duty guide and ball screw
High torque/high speed spindle
Material centering Tools compensation
Digital integrated hydraulic system
PROSPER SPINCAD Programming Software
BE unit(Optional)
Lubrication Spray unit(Optional)
Manipulator(Optional)
SIEMENS system with PROSPER secondly
Surface treatment tools(Optional)
Finger tools(Optional)
